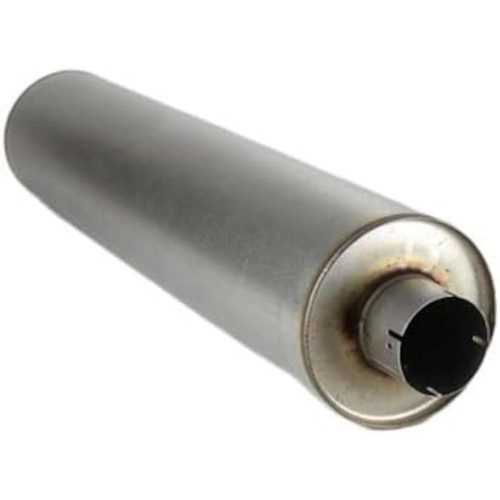

Donaldson M090544 Exhaust Muffler, Round Style, 51″

Description

Donaldson M090544 Exhaust Muffler, Round Style, 51″

Cross Reference #:

• NAVISTAR FLT86108M
  A P PARTS 3664
  A P PARTS 3666
  A P PARTS 3666Q
  A P PARTS 3872
  ACRAFIT M10108
  ACRAFIT M10713
  AG CHEM EQUIPMENT 514061
  AG CHEM EQUIPMENT 605405
  AGCO AG605405
  AP EXHAUST PRODUCTS INC 3666

Specifications:

• Body Length 44.44 in
  Overall Length 51.00 in
  Attenuation Hr 18 dBA
  Attenuation Lr 13 dBA
  Back Pressure High-range Hg2.99 inch Hg)
  Back Pressure Low-range Hg0.98 inch Hg)
  Back Pressure Mid-range Hg2.01 inch Hg)
  Body Diameter Maximum 9.01 in
  Inlet Diameter 4.02 in
  Outlet Diameter 4.02 in
  Rated Flow Hr 56.8 m?/min (2006 cfm)
  Rated Flow Lr 32.8 m?/min (1158 cfm)
  Rated Flow Mr 46.4 m?/min (1639 cfm)
  Style Style 1

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.
