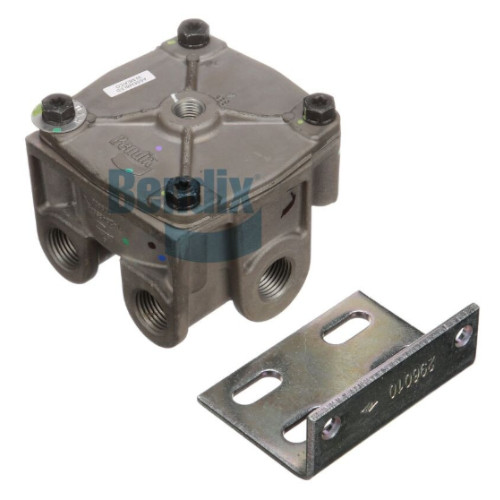

Bendix 065125 Relay Valve, Air Brake R-12 (Genuine)

Bendix 065125 Relay Valve, Air Brake R-12 (Genuine)

Cross Reference #:

• BEN065125
• BW065125
• BK065125
• 65125
• HALDEX KN28060
• KN28060X
• 296010N
• AIRSOURCE 5125
• BEPCO 065125X
• POWER PRODUCTS 065104P
• 065125P
• PRIMA BRAKE AV065125

Applications:

Specification:

• Body Configuration 2 SUP / 2 DEL (H)
• Cautionary Note(s) Not applicable to this part
• Control / Secondary Service Port 1/4-18 NPT
• Control Port Orientation (CW from Front Face) Not applicable to this part
• Crack Pressure 5.5 PSI
• Delivery Port 1 1/2-14 NPT
• Delivery Port 2 1/2-14 NPT
• Delivery Port 3 Not applicable to this part
• Delivery Port 4 Not applicable to this part
• Delivery Port 5 Not applicable to this part
• Delivery Port 6 Not applicable to this part
• Delivery Port 7 Not applicable to this part
• Delivery Port 8 Not applicable to this part
• Exhaust Port Dust Shield
• Internal Supply Passage to Cover Not applicable to this part
• Market Indicator Aftermarket New
• Maximum Operating Temperature 200 AdegF (93 AdegC)
• Minimum Operating Temperature -40 AdegF (-40 AdegC)
• Mounting .96 IN x .40 IN Slot (4x)
• Mounting Bracket Direction Not applicable to this part
• Mounting Bracket Location Loose in Box
• Mounting Orientation (CW from Front Face) Not applicable to this part
• Supply Port 1 1/2-14 NPT
• Supply Port 2 1/2-14 NPT

Features:

• Crafted from high-quality materials to provide long-lasting performance and withstand the rigors of heavy-duty use
• Reliable pressure sensing to provide dependable braking performance
• Allows for the efficient operation of a vehicle's braking system
• Designed for frame or reservoir mounting
• Operating temperature from -40 ?F to 200 ?F
• .96" x .40" Slot (4x)
• 5.5 psi

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life. However, we assure you they are entirely brand new and have never been used.

Bendix Commercial Vehicle Systems designs, develops, and supplies leading-edge active safety technologies, energy management solutions, and air brake charging and control systems and components under the Bendix? brand name for medium- and heavy-duty trucks, tractors, trailers, buses, and other commercial vehicles throughout North America. Their innovative products and services enhance vehicle performance, safety, and efficiency, contributing to the reduction of accidents and environmental impact. Bendix is committed to advancing the commercial transportation industry through continuous research and development, ensuring their solutions meet the highest standards of quality and reliability. The company also provides comprehensive training and support to customers, helping them optimize the use of Bendix products in their fleets.
