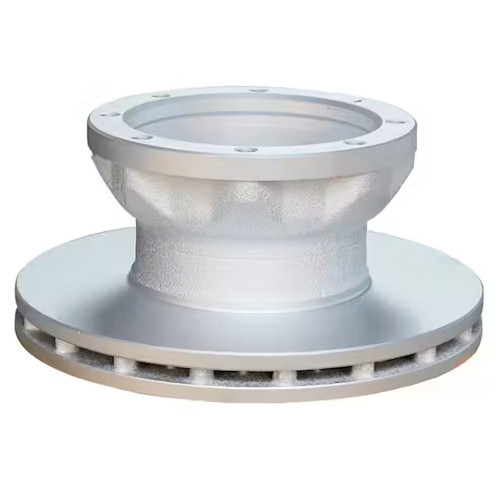

Celect CSD17A19 Air Disc Brake Rotor Wabco Pan 17 (Meritor M44AD75180, Wabco CT826)

Celect CSD17A19 Air Disc Brake Rotor Wabco Pan 17 (Meritor M44AD75180, Wabco CT826)

Cross Reference #:

• AUTOMANN 153175180
• Bendix AMR2224N
• CELERITY CSD17A19
• CENTRIC 120.86022
• DAYTON PARTS BATCO 125704
• DURABRAKE 75180
• Dexter 70005
• FORT GARRY SSR933
• HALDEX MPBR75180
• Hendrickson S33391
• NEOTEK 1065034GF
• Neotek Drums and Rotors 1065034GF
• RAYBESTOS 8577
• TORQSTOP RUW75180
• WABCO CT826
• Webb 55030F, 55030P

Compatibility:

• 2011 - 2015 Smith Newton
• Trailer Axles up to 15,500# GAWR

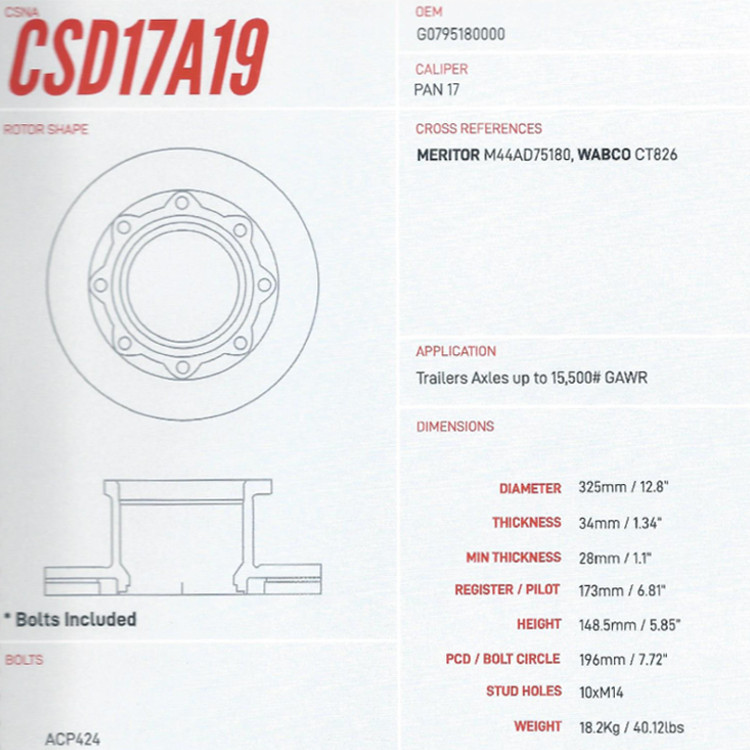

Specifications:

• Diameter: 325mm / 12.8"
• Thickness: 34mm / 1.34"
• Minimum Thickness: 28mm / 1.1"
• Register/Pilot: 173mm / 6.81"
• Height: 148.5mm / 5.85"
• PCD/Bolt Circle: 196mm / 7.72"
• Stud Holes: 10xM14
• Weight: 18.2Kg / 40.12lbs
• Disc Quality: Premium
• Material: Cast Iron
• Package Contents: 1x Brake Disc

Features:

• Rotor face receives pad contact across the braking surface
• Mounting-hole pattern secures the disc at the wheel-end hub area
• Brake-family layout matches the service group called out for this rotor
• Handles heat transfer created during repeated brake applications
• Guides brake repair toward the rotor instead of caliper hardware
