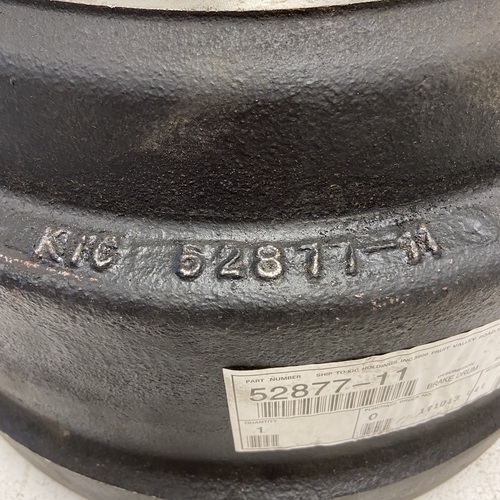

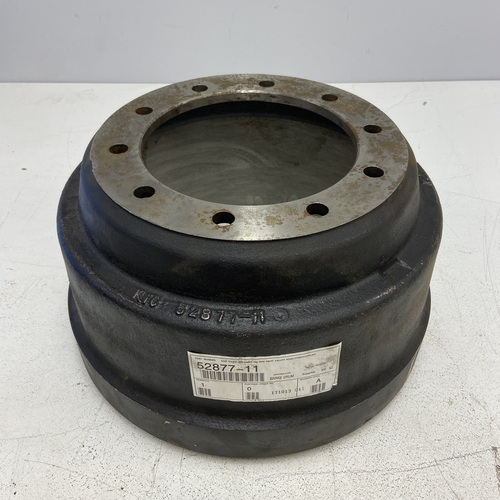

Accuride 52877-11 Brake Drum, Cast Iron, Outboard, (16.5″ x 7″)

Accuride 52877-11 Brake Drum, Cast Iron, Outboard, (16.5" x 7")

Product Features:

• KIC Cast Iron Brake Drums are OEM First Fit Quality
• Optimized Metallurgy for maximum heat dissipation, durability, and stopping ability.
• Special information: 1 [3 holes]

Cross Reference #:

• Meritor 03-120877-002
• AUTOMANN 151.312
• KIC 5287711
• Erie Wheels 2764
• DuraBrake 16729
• Meritor 120877
• Meritor 123415
• Meritor 123422
• Meritor  85120877002
• Meritor 3120877002
• Webb 60876F
• NWRA X-60464

Specifications:

• Brake Surface Diameter: 16.50
• Brake Surface Width: 7.52
• Bolt Circle Diameter: 11.25
• Bolt Hole Size: 0.81
• Pilot Diameter: 9.44
• Overall Depth: 10.75
• Mounting Flange Thickness: 0.57
• Axle Rating/GAWR:
• Brake Size: 16.50 x 7.00
• Drum Mount: Outboard
• Finished Weight: 121.00
• Maximum Wear Diameter: 16.62
• Measurement: Imperial
• Number of Bolt Holes: 10

Accuride Corporation manufactures wheels, wheel end, and braking components for commercial and passenger vehicles. Our lean global manufacturing footprint means Accuride is trusted by original equipment manufacturers and the aftermarket to deliver the best products, and deliver them on time.
