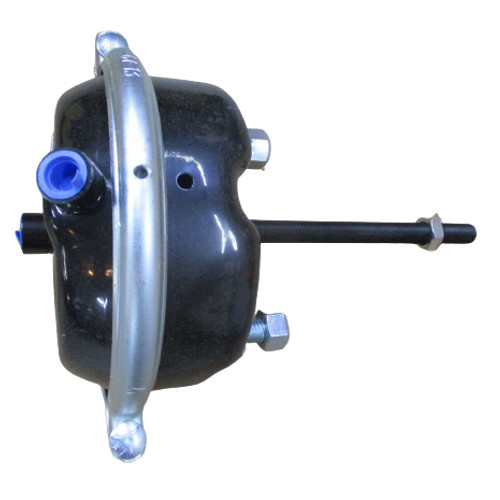

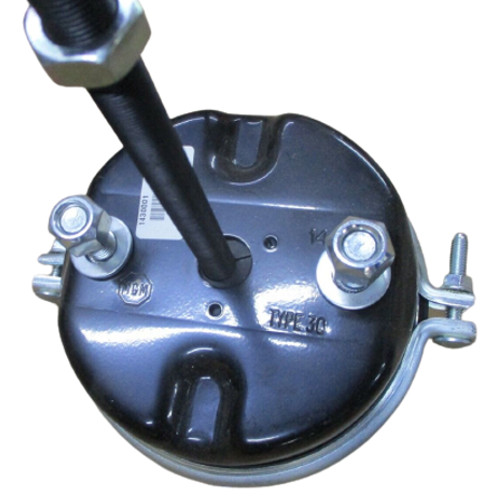

Type 30 Service Brake Chamber, 2.5″ Stroke, 8″ Rod MGM 1430001

Type 30 Service Brake Chamber, 2.5" Stroke, 8" Rod MGM 1430001

Cross Reference #:

• T30
• Automann 179.SC30
• Bendix 5007121N, 800826
• Euclid E30S, EBC30S
• MGM Brakes 1430001
• MGM Brakes 1430411
• Midland KN36300

Applications:

• S‑cam drum brake systems
• Class 7–8 semi‑tractors (Freightliner, Kenworth, Peterbilt, Volvo, Mack, International, Western Star)
• Heavy‑duty trailers (dry van, reefer, flatbed, tanker, dump)
• Vocational trucks (dump trucks, mixers, roll‑offs, refuse/garbage trucks)
• Construction and municipal vehicles

Specifications

• Brand: MGM Brakes
• Part#: 1430001

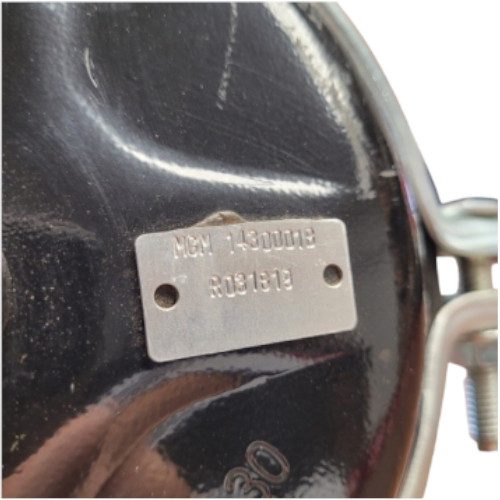

• Notes: The "B" on the part# is from the manufacturer meaning Bulk.
• Condition: New
• Stroke (in.): 2.50 (63.5mm)

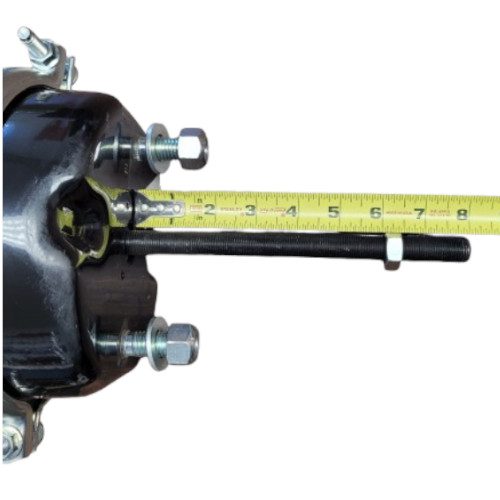

• Push Rod Length: 8.00", Fully Threaded
• Service Size: 30
• Mounting Bolt Thread: 5/8-11
• Mounting Bolt Length (in.): 1.550
• Port Size: 3/8-18 NPTF
• Weight lb (kg) 10.70 lb (4.9 kg)
• 4.43" (112.5 mm)
• 3.69" (93.7 mm)
• 8.27" (210.0 mm)
• 4.75" (120.7 mm)
• 5/8" - 11 UNC
• 5/8" - 18 UNF
• Inlets 3/8" - 18 NPTF

Features:

• Formed Steel Pressure Cap -Epoxy-Coated
• Formed Steel Non-Pressure Chamber -Epoxy-Coated
• Heavy-duty Nylon Reinforced Diaphragms

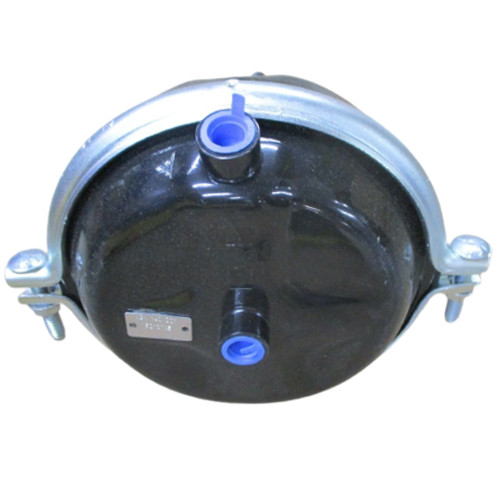

• Top and Side Air Ports- 3/8" NPTF
• Center Hole Shield (Except type 12 and type 16)

MGM Brakes, is a leading manufacturer of spring brake actuators and brake products for commercial vehicles, specializing in heavy-duty braking solutions. Founded in 1956, MGM has built a reputation for producing reliable, durable brake systems that enhance safety and performance in demanding environments. Their products, including a wide range of air brake actuators, are known for high-quality engineering and are trusted by fleet operators across North America. The company places a strong emphasis on innovation, with ongoing research and development to advance brake technology and meet evolving industry standards. MGM Brakes' commitment to quality and safety has established them as a trusted provider of brake components for buses, trucks, and other heavy-duty vehicles.
