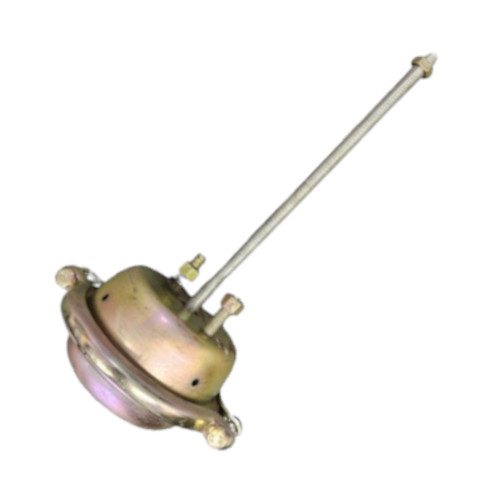

Type 16 Service Brake Chamber, Gold

Description

Type 16 Service Brake Chamber, Gold

Cross Reference #:

• Euclid E-16S
• Haldex KN36016
• Haldex N36216CL
• Haldex SC16
• Bendix 288799
• Bendix 5007118
• Bendix 5007118N
• Bendix 800823
• Meritor R870016
• Leland Brake & Wheel Parts 1600SC
• MGM Brakes 1416001
• Batco 05-116
• World American WAKN36016
• Automann 179.SC16
• Automann 179.SC16A
• OTR 16SC
• OTR SC1600

Specifications:

• Air Port Thread Diameter .375 IN
• Chamber Height 3.65 IN
• Chamber Type Service
• Inlet Type Round
• Model Type 16
• Mount Holes Center To Center Length 3 IN
• Mounting Bolt Thread Diameter .4375 IN
• Mounting Bolt Thread Pitch 20
• Push Rod Diameter .5 IN
• Push Rod Length 8.25 IN
• Push Rod Thread Pitch 20
• Ram Stroke 2.25 IN
• Stroke Type Standard
• Taxonomy A Air Brake Components
• Taxonomy B Air Chambers
• Taxonomy C Service Chambers
• Taxonomy D Type 16
