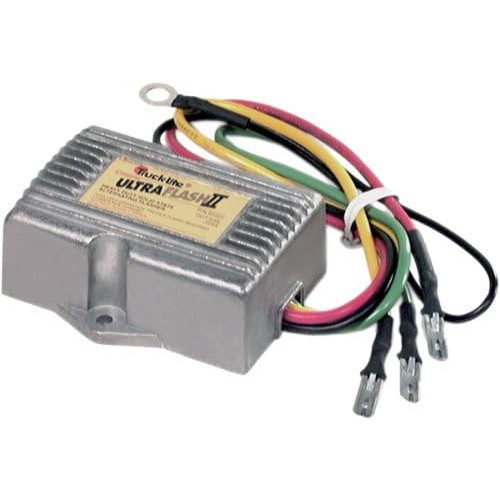

Truck-Lite 97201 Flasher Module, Heavy Duty, Tailgate LTS

Description

Truck-Lite 97201 Flasher Module, Heavy Duty, Tailgate LTS

Cross Reference #:

• 34-400
• NAPA 97201
• TRU97201
• TL97201
• TL-97201
• TRL97201

Specifications:

• Flasher Ampere Capacity: FMVSS 108, SAE
• Housing Material: Aluminum
• Kit: No
• Lamp Connection: Hardwired
• Mount Type: 2 Screw
• Nsn FMVSS 108, SAE
• Plug Side One: Hardwired
• Plug Side Two: Spade Terminal, Ring Terminal
• Standards Met: J590, J1054
• Trim Color: Silver
• Trim Material: Aluminum
• Voltage: 12, 24
• Wire Quantity: 4

Features:

• ULTRA FLASH II
• Solid-state electronics are sealed in polyurethane for moisture and corrosion protection
• Surface mounts with two 1/2″-6 pan head screws at 212″ centers or with two 4″ cable ties (both included)
• Protects against short circuit overloads with a self-resetting feature
• Works with LED or incandescent lamps on 12V or 24V electrical systems
• 97231, 97232 and 97233 rated for loads below 25 amps or 12,-32 cp bulbs
• 97201 rated for loads below 17 amps per channel or 8-32/3 cp bulbs
• Optional remote wiring requires 12″ jumper wire, 94954
• 97231, 97232 and 97333 feature folding bi-polar plug with 11″ leads for reverse polarity operation
• 97201 features three 1/4″ tabs and one 1/4″ ring with heat shrink tubing and 12″ leads
• 97201 used for wig/wag system
• For interior/cab use only
• Do not expose to moisture or liquid
