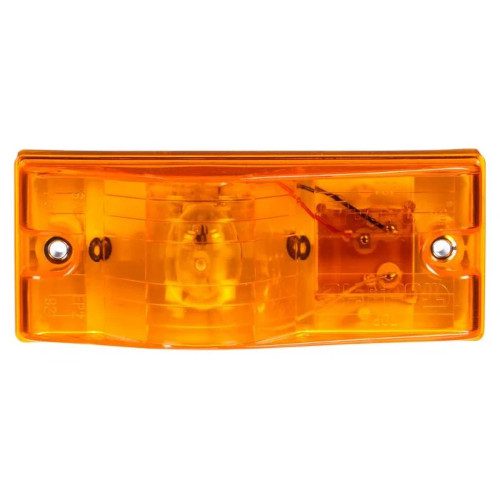

Truck-Lite 22202Y Side Turn Signal, Yellow 22 Series, 2.5″ x 6″, 12V

Description

Truck-Lite 22202Y Side Turn Signal, Yellow 22 Series, 2.5″ x 6″, 12V

Cross Reference #:

• GROTE 53063
• TL22202Y
• 22202Y3
• TRU22202Y

Specifications:

• Category Turn Signal
• Series 22 Series
• Warranty 1-Year
• Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
• Common Root 22202Y
• Country of Origin ZZ
• Current Minor .49
• Features & Benefits Features dual contact marker/clearance and side turn or auxiliary turn functions|Mounts on surface of vehicle or with “L” bracket|Red lamp should be used for rear vehicle applications|Yellow version exceeds SAEJ2039 side turn and marker standards
• Feature Highlights No Plug|PL-3|12 V
• Housing Material Polycarbonate
• Itm Id 2073844
• KIT (Yes/No) No
• Lens Shape Rectangular
• Lighting Technology Incandescent
• Lamp Connection PL-3
• Lamp Connection (Simplified) PL-3
• Lens Color Yellow
• Lens Height_INH 2.4
• Lens Material Polycarbonate
• Lens Width_INH 5.94
• Mount Type 2 Screw
• NAPA Part Number 22202Y
• Number of Diodes/Bulbs 1
• Packaging Type Standard
• Part Number 22202Y4
• Plug Side One No Plug
• Plug Side Two No Plug
• Position Side
• Reflectorized (Yes/No) No
• Sealed/Bulb Replaceable Sealed
• Standards Met P2|E
• Std Carton Qty 1
• Taxonomy Lights.Turn Signal Lights
• Total Depth_MMT 61.21
• Total Depth 2.41
• Temp. Description Mdl 22 Side Turn Lamp
• Total Height_MMT 60.96
• Total Height 2.4
• Total Length 2.1
• Total Width_MMT 150.88
• Total Width 5.94
• Voltage (VLT) 12
• Weight .46

Features:

• Features dual contact marker clearance, side turn, and auxiliary turn functions
• Lens-to-housing seal protects internal components from dirt and moisture
• Complies with SAE J2039 standards for side turn and marker lamps
• Meets or exceeds FMVSS 108, CMVSS 108, DOT, and SAE specifications
