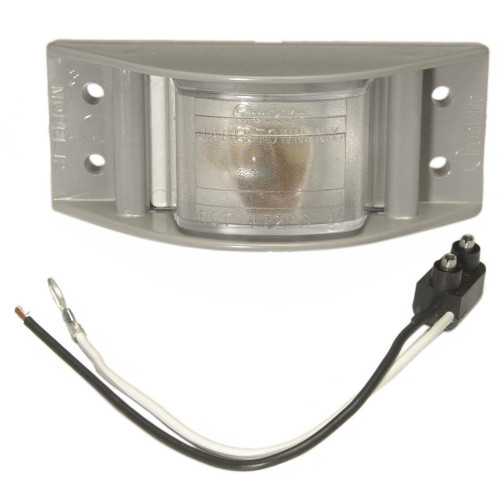

Truck-Lite 12003C Clearance Marker, Deflector Mount, Model 12

Description

Truck-Lite 12003C Clearance Marker, Deflector Mount, Model 12

Cross Reference #:

• TRL-12003C

Specifications:

• Pigtail, lens gasket and mounting pad included
• Brand: Truck-Lite
• Current: 0.33
• Voltage: 12
• Series: 12 Series
• Lighting Technology: Incandescent
• Number of Diodes/Bulbs: 1
• Number of Wires: 2
• Wire Gauge: 16
• Lamp Connection: PL-10
• Plug Side One: PL-10
• Plug Side Two: Ring Terminal|Stripped End
• KIT (Y/N): Yes
• Lens Shape: Rectangular
• Lens Color: Clear
• Mount/Trim Color: Gray
• Mount/Trim Material: ABS
• Housing Material: Polycarbonate
• Lens Material: Polycarbonate
• VMRS: 034-004-036
• Mount Type: 4 Screw Bracket Mount
• Switch: No
• Product Type: Utility Light
• Common Size: 2″x3″
• Mounting Connector Diameter: 0.21 inch
• Lens Width: 2.9 inch
• Lens Height: 1.6 inch
• Total Height: 1.92 inch
• Total Width: 4.90 inch
• Total Depth: 2.03 inch
• Weight: 0.20 pound
