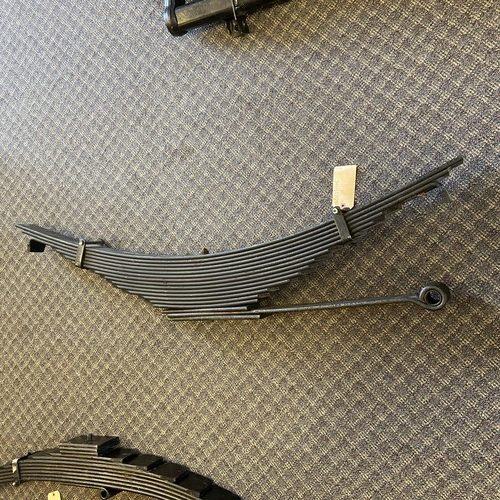

Triangle 43-1165 Rear Leaf Spring, For Ford, 17 Leaves

Description

Triangle 43-1165 Rear Leaf Spring, For Ford, 17 Leaves

Compatibility:

• Ford B and F Series Rear Leaf Spring 1963 – 1999

Cross Reference #:

• F2HZ5560UA
• F2HT5560UA
• 431165
• 71007
• 81842

Specifications:

• Number of Leaves – 17
• Leaf Spring Width – 3″
• Leaf Spring Length: 29-3/4″
• Leaf Spring Length: 29-3/4″
• Leaf Spring Arch: 6-7/8″
• Leaf Spring Pack Thickness: 7-5/16″
• Leaf Spring Eye Bushings: HK-3 / HK-3
• Radius Rod with Bronze Bushing – 30-1/2″ (5″ x 25-1/2″)
• Capacity: 13,000 lb
• OEM Part Number: F2HZ5560UA, F2HT560UA, 71007, 81842
• Material: 15/.447, Pad 1/.360, Radius Leaf 1/.477, 1/.499
• Weight: 194 lbs

1963 – 1999 B and F Series trucks with slipper type ends and radius leaf. The 43-1165 leaf spring fits the rear of the B500, B600, B700, B750 and the F500, F600, F700, F800, F880 truck chassis with 15 leaf springs, hook leaf on both ends / number 3 leaf, radius leaf, and 13,000 lbs. capacity. OEM Number F2HZ5560UA, F2HT560UA.

Triangle Suspension Systems Since 1919, the TRIANGLE name has been synonymous with steel leaf springs. A series of strategic acquisitions put TRIANGLE firmly on the road to becoming a leader in undercarriage products for heavy, medium & light duty trucks and trailers in the North American market.
