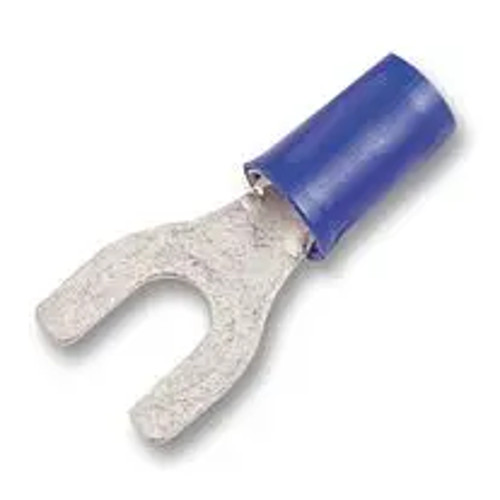

TE Connectivity 32060 Terminal Spade, Crimpable 16-14 AWG #10 Stud Insulated Blue Nylon (90 Pack)

TE Connectivity 32060 Terminal Spade, Crimpable 16-14 AWG #10 Stud Insulated Blue Nylon (90 Pack)

Cross Reference #:

• AMP-32060
• AMP32060
• 19J4932

Specifications:

• Wire Gauge 16-14 AWG
• Terminal Type
• Standard
• Stud/Tab Size
• 10 Stud
• Width - Outer Edges
• 0.375" (9.53mm)
• Length - Overall
• 0.908" (23.06mm)
• Mounting Type
• Free Hanging (In-Line)
• Termination
• Crimp
• Wire Gauge
• 14-16 AWG
• Insulation
• Insulated
• Features
• Serrated Termination
• Color
• Blue
• Contact Finish
• Tin
• Contact Material
• Copper
• Insulation Diameter
• 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
• Material - Insulation
• Polyamide (PA), Nylon
• Length - Ring Center to Termination
• 0.312" (7.92mm)
• Length - Termination
• 0.404" (10.26mm)
• Tongue Inside Opening
• 0.197" (5.00mm)

TE's AMP family of products includes industry-leading connectors, components, cables, and tooling used to transmit data, power, and signal in the machines, devices, and systems helping to make the world safer, sustainable, productive and connected.
