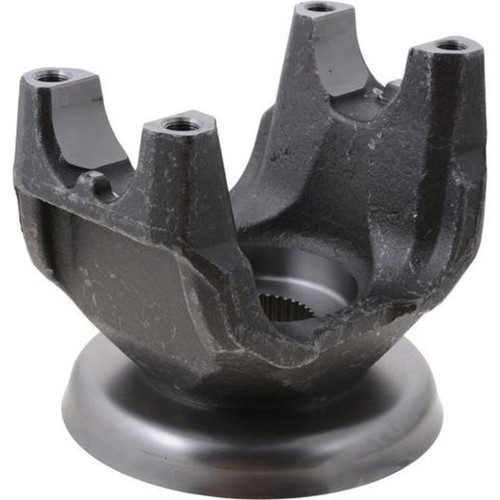

Spicer 6-4-6391-1X Pinion Shaft End Yoke (Genuine)

Description

Spicer 6-4-6391-1X Pinion Shaft End Yoke (Genuine)

Cross Reference #:

• Dana 6-4-6391-1X
• Meritor 17TYS32-56A
• Meritor 6-4-6391-1X
• Meritor A 3260T1814
• Neapco OE Series N6-4-6391-1X
• DANA 6-4-6391-1X
• MERITOR 17N-4-6391-1X
• SP6463911X
• Meritor 17TYS32-56A
• Meritor 6-4-6391-1X
• Meritor A 3260T1814
• Neapco OE Series N6-4-6391-1X
• Daimler Truck North America 30011-3497
• Daimler Truck North America 30011-3527
• Daimler Truck North America SP 6 4 6391 1X
• Daimler Truck North America SP 6 4 6391 1XHP
• Dana Commercial Vehicle Service Parts 171MU51P52
• Dana Commercial Vehicle Service Parts 2104-6463911X
• Volvo 171MU51P52
• Volvo 2104-6463911X
• Volvo 25160782
• Volvo 8068502
• Volvo SP 6463911X
• Volvo SP 6-4-6391-1X
• International Harvester (IHC) 2013007C91
• International Harvester (IHC) 6463911X
• International Harvester (IHC) D6463911X
• International Harvester (IHC) E6463911X
• McNeilus 3KK404
• Navistar 2013007C91
• Navistar 6463911X
• Navistar D6463911X
• Navistar DS6463911X
• Navistar E6463911X
• Paccar Parts 6-4-6391-1X
• Rockwell International 17TYS32-56A
• Mack 171MU51P52
• Mack 2104-6463911X
• Mack 25160782
• Freightliner 30011-3497
• Freightliner 30011-3527
• Freightliner SP 6 4 6391 1X
• Freightliner SP 6 4 6391 1XHP
• Peterbilt 3KK404
• UAP 6-4-6391-1X

Specifications:

• Series 1710
• Material Steel
• Spline Count 39
• Type Splined Hole
• Assembly Y
• Hub Diameter R 3.000 IN
• Includes Slinger/Plug Y
• Involute Spline N
• Length Thru Hole Q 2.312 IN
• Outside Yoke Dimension (In) E 6.190 IN
• Yoke Bearing Dimension (In) D 1.938 IN
• Yoke Style HR
• Major Diameter 2.024 IN
• C/L To End Hub S 6.250 IN
• C-Bore Depth 0.900 IN

Applications:

• MERITOR 0000 Q-100
• MERITOR 0000 R-270
• MERITOR 0000 R125
• MERITOR 0000 R128
• MERITOR 0000 R611
• MERITOR 0000 RF- -145
• MERITOR 0000 RS- -380
• MERITOR 0000 SQ-100
• MERITOR 0000 SQHP
• MERITOR 0000 T-270
• MERITOR 0000 U-270
• MERITOR 0000 W-270

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Spicer makes drivetrain parts by Dana that are built for older vehicles that still have an important job to do. The Spicer solution is simple: To provide quality-built all-makes parts that are backed by the Dana name you know and trust. Parts that are designed for exceptional fit and easy installation to maximize uptime.
