Spicer 170-70-18X Universal Joint Strap Kit

Description

Spicer 170-70-18X Universal Joint Strap Kit

Cross Reference #:

• SP-170-70-18X
• 1707018X
• SP1707018X
• Midwest 170-70-18XR
• Meritor 170N-70-18X
• Neapco OE Series 4697029
• Neapco OE Series N170-70-08X
• Neapco OE Series N170-70-18X
• New Holland Construction BN326109
• Daimler Truck North America 30071-3401
• Daimler Truck North America SP 170 70 18X
• Daimler Truck North America SP 170 70 18XHP
• Dana Commercial Vehicle Service Parts 170-70-18X25
• Dana Commercial Vehicle Service Parts 2104-1707018X
• Volvo 2104-1707018X
• Volvo 3947699
• Volvo SHP1707018X
• Volvo SP 1707018X
• Hino SP-1707018X
• International Harvester (IHC) 1707018X
• International Harvester (IHC) 2500674C91
• International Harvester (IHC) 3513127C91
• International Harvester (IHC) D1707018X
• International Harvester (IHC) E1707018X
• International Harvester (IHC) SB1707018X
• International Harvester (IHC) SD1707018X
• McNeilus 1479072
• McNeilus 3326526
• Navistar 1707018X
• Navistar 1707018X25
• Navistar 2500674C91
• Navistar 3513127C91
• Navistar D1707018X
• Navistar DS1707018X
• Navistar E1707018X
• Navistar ESPL1704X
• Navistar SB1707018X
• Navistar SB1707018X25
• Navistar SD1707018X
• Navistar SD1707018X25
• Paccar Parts 170-70-18X
• Mack 170-70-18X
• Mack 2104-1707018X
• Freightliner 30071-3401
• Freightliner SP 170 70 18X
• Freightliner SP 170 70 18XHP
• Blue Bird 0045639
• Peterbilt 015636486
• Peterbilt 3326526
• Pierce 3326526
• UAP 170-70-18X

Specifications:

• Driveline Series: SPL170
• Strap Retainer Type: Bearing cap retainer (cast iron)
• Strap Mounting Hole Center To Center Length: 3.22 in
• Strap Width: 4.20 in
• Bolt Thread Size: M12 x 1.25 mm
• Bolt Length Under Head: 0.98 in
• Bolt Torque: 115

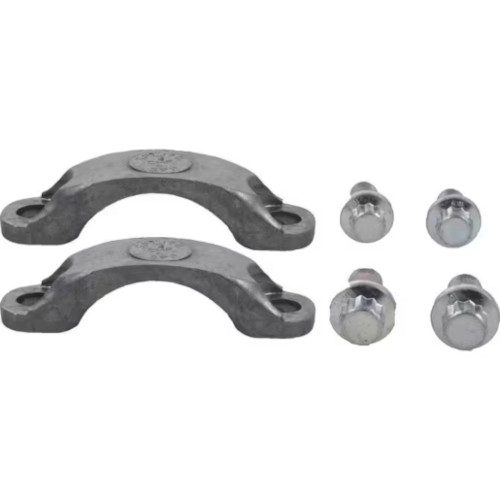

• Package Contents: Comes with 2 straps and 4 bolts

Features:

• Engineered, manufactured, and field-tested to ensure the application
• Designed for minimal downtime and fewer maintenance intervals
• Trusted by OEMs and fleets
• For thread diameter M12 X 125 6G
• Bolt Length of 0.984
• 3.228 C/L to C/L

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Spicer makes drivetrain parts by Dana that are built for older vehicles that still have an important job to do. The Spicer solution is simple: To provide quality-built all-makes parts that are backed by the Dana name you know and trust. Parts that are designed for exceptional fit and easy installation to maximize uptime.
