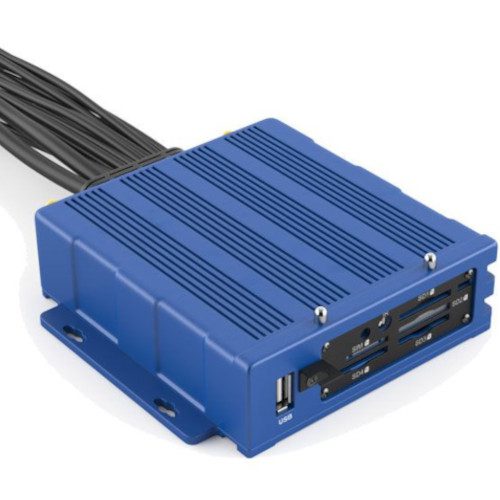

RVS 032-1053 Electronic Control Unit for inView 360 HD,w/o Lockable Front Cover

Description

RVS 032-1053 Electronic Control Unit for inView 360 HD,w/o Lockable Front Cover

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Cross Reference #:

• RVS032-1053
• Rear View Safety 032-1053
• 0321053

Specifications:

• Enclosure: die-cast aluminum ADC12; lockable/removable front cover (metal)
• Video Outputs: 1080p / CBVS, 2 ports Video Inputs (1)Up to 6
• Frame Rate: 1080p @30fps NTSC, @25fps PAL all channels Compression/EncodingH.264
• Trigger Signals: Left / Right / Reverse / Panic (event marking), On Screen Overlay Trigger
• Voltage: 6-32VDC @ 0.12 to 0.63 mA Camera Port Impedance 75
• Video Output Port Impedance 75
• GPS<28mA @ 3.3V
• Dimension (W x L x D): 5.8 x 6.8 x 1.5 inches (135 x 172 x 40 mm) IR
• Sensor: External with 9.8ft (3m) extension * SD Card Sold Separately

Features:

• 1080p video output enables you to view and record high definition video.
• Built-in DVR securely records all connected cameras individually making it great for insurance purposes when used in legal proceedings.
• Selectable on screen overlay allows the user to set the width, length, and position of the overlay for their specific apparatus.
• Saves valuable time when deploying outriggers, water dumps, tool boards or filling water tank vehicles.
• Adjustable blend lines eliminate blind spots
• Full Around Vehicle Monitoring (AVM).
• The standard system consists of four cameras to provide a 2D, four camera stitched-around-vehicle view (top view).
• The system is capable of connecting another 1-2 cameras to monitor other areas.
• All connected cameras are recorded.
• Optional STD and HD monitors are available.
• Second view switches automatically between front, left, right and reverse when triggered by vehicle controls.
• DVR includes built in GPS and accelerometer.
