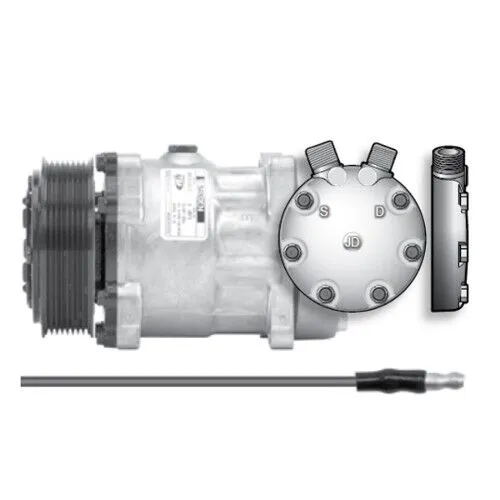

Red Dot 75R8462 AC Compressor, Sanden Style SD7H15, 12V, 119MM

Description

Red Dot 75R8462 AC Compressor, Sanden Style SD7H15, 12V, 119MM

Cross Reference #:

• Red Dot Part No.: 75R8462
• Red Dot Factory Part No.: RD-5-9251-0P
• Sanden Part No.: 4711, 8103
• Air Source Part No.: 5706
• Alliance Part No.: ABP N83 304344, ABP N83 304562
• Carrier A/C Part No.: 18-00093-02
• Caterpillar Part No.: 232-9279
• Mack Part No.: 4379-RD592510
• Paccar Part No.: 18-04081
• Truck Air Part No.: 03-3784
• Volvo Part No.: 8177089, RDHRD592510P

Specifications:

• Refrigerant Type: R134a
• Voltage: 12
• Sanden Model Type: SD7H15
• Mount Type: Ear
• Head Type: JD
• Head Fitting Position: Vertical O-Ring
• Head Fitting Size: 3?4 x 7?8
• Cubic Inches: 9.5
• Clutch Type: 4.7? (119mm) Poly 8
• Gauge Line: 34mm
• Connector Type: Bullet
• No. of Wires: 1
• Clutch Shaft Type: Key
• Sanden Clutch Part No.: 6522-6010
• Red Dot Clutch Part No.: 75R1862
• Factory Clutch Part No.: RD-5-10762-0P

Red Dot designs and builds mobile HVAC systems and components for a wide range of heavy-duty commercial and military vehicles.
