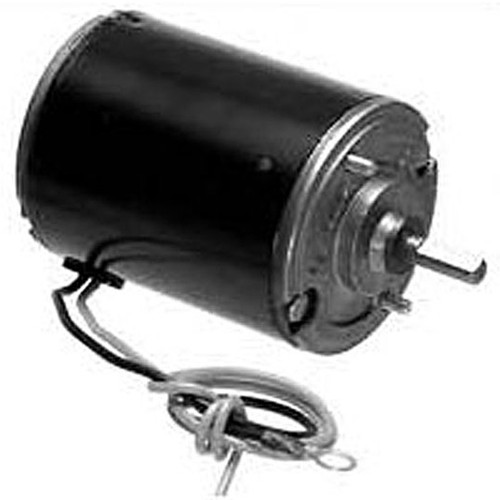

Red Dot 73R0532 Blower Motor, Single Shaft, Single Speed 12V CW Strap/Stud Mount

Description

Red Dot 73R0532 Blower Motor, Single Shaft, Single Speed 12V CW Strap/Stud Mount

Cross Reference #:

• Red Dot Part No.: 73R0532
• Red Dot Factory Part No.: RD-5-3690-1P
• Air Source Part No.: 3927
• Alliance Part No.: ABP N83 301382
• Bergstrom Part No.: 203174, 203132
• Climatech Part No.: HA1820, BSM203178, HA1175, HA1700, HA1175, HA1700
• Kysor Part No.: 1075008
• Mack Part No.: 2790-275160, 4379-RD554350, 4379-RD55435-0
• Navistar Part No.: ZGG701009
• Siemens Part No.: PM3604
• Volvo Part No.: 3918242
• OEM Number: HA1700, 2809-541-006

Specifications:

• Red Dot Series: 73R Series
• Description: Blower Motor
• Volts: 12V
• Mount Type: Strap/Stud, Span 2 5/16″
• Overall Length: 4 7/8″
• Motor Length: 4″
• Motor Diameter: 3″
• Rotation: Clockwise
• Shaft Type: Single (5/16″ dia)
• Shaft Length: 1″
• Speed(s): Single
• Vent: Non-Vented
• Type: Permanent Magnet Motor
• Connector: Two conductor with ring terminal

Red Dot designs and builds mobile HVAC systems and components for a wide range of heavy-duty commercial and military vehicles.
