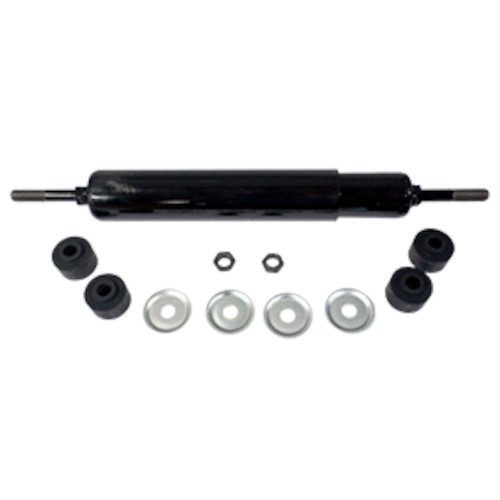

Pro-Par 85069 Shock Absorber, Heavy Duty (Gabriel 85069)

Description

Pro-Par 85069 Shock Absorber, Heavy Duty (Gabriel 85069)

Cross Reference #:

• GAB85069
• M85069
• GBL85069
• MERITOR M85069
• ARVIN MERITOR 671091
• BULL DOG HD1215-0031
• BULL DOG HD1215-0076
• FLEETRITE AMS650468
• GOLD 8160120
• GOLD 9180188
• KENWORTH 665844
• KENWORTH 03-08781
• KENWORTH C71-1011
• KENWORTH C71-1011PLUS
• KENWORTH C71-1011SPL
• KENWORTH C71-1017
• KENWORTH C71-6005
• MONROE 65468
• MONROE 65528
• MONROE 66434
• MONROE 555019
• PETERBILT 665826
• PETERBILT 665844
• PETERBILT 671091
• PETERBILT 03-08781
• PETERBILT C71-1011PLUS
• PETERBILT C71-1011SPL
• PETERBILT C71-1017
• PETERBILT C71-6005
• PETERBILT C71-1011
• SACHS 316 824
• TRUCKMASTER 665844
• VOLVO 83176227
• VOLVO SA5069
• BULLDOG HD SHOCKS HD1215-0031
• BULLDOG HD SHOCKS HD1215-0076

Applications:

• Peterbilt 536 (2022)
• Kenworth W990 (2019-2022)
• Peterbilt 520 (2017-2022)
• Peterbilt 587 (2011-2018)
• Kenworth T700 (2011-2015)
• Peterbilt 579 (2013-2022)
• Peterbilt 389 (2008-2022)
• Kenworth T880 (2014-2022)
• Kenworth T680 (2013-2022)
• Peterbilt 388 (2008-2015)
• Peterbilt 387 (2003-2011)
• Peterbilt 386 (2006-2016)
• Peterbilt 367 (2008-2022)
• Kenworth T660 (2008-2018)
• Peterbilt 385 (2004-2007)
• Peterbilt 378 (2003-2007)
• Peterbilt 362 (2002-2006)
• Peterbilt 567 (2014-2022)
• Peterbilt 382 (2011-2017)
• Peterbilt 384 (2008-2016)
• Peterbilt 365 (2008-2022)
• Kenworth W900 (2008-2022)
• Kenworth T800 (2008-2022)
• Peterbilt 379 (2003-2007)
• Peterbilt 357 (2002-2008)
• Peterbilt 320 (2002-2018)
• Peterbilt 337 (2010-2022)
• Kenworth T370 (2008-2022)
• Kenworth T270 (2008-2022)
• Peterbilt 335 (2005-2010)
• Peterbilt 330 (2003-2005, 2007-2022)

Specifications:

• Stroke: 10.34″, 10.33
• Extended Length: 26.28″, 26.31
• Collaped Length: 15.94″
• Bore: 1.63″
• Dust Tube Diameter: 2.5
• Recoil Cutoff: Yes
• Upper Mount Code: S21
• Upr Mntng Pin Diamtr: Na
• Collapsed Length: 15.97
• Dust Tube: Yes
• Mount Type: Stud Upper/Lower
• Cylinder Diameter: 2.19
• Lwr Mntng Pin Diamtr: Na
• Compression: 255.0
• Lower Mount Code: S21
• Rebound: 762.0
• Depth: 27
• Weight: 8.7 lb

Features:

• Larger 1 5/8″ bore supplies improved durability and greater tensile strength
• Bulged design provides increased fluid capacity and cooler operation in extreme conditions
• Forged solid steel eye rings with arc-welded mounts reduces risk of end mount failures
• Super-finished chromed piston rod for increased corrosion resistance and long-lasting service life
• 10-stage valving provides maximum comfort and control and self-cleaning functionality

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Pro-Par Since 1966, the Pro-Par name has represented a premium brand throughout the trucking industry. Pro-Par products are constructed of high-quality materials and designed for superior performance, reliability and durability.
