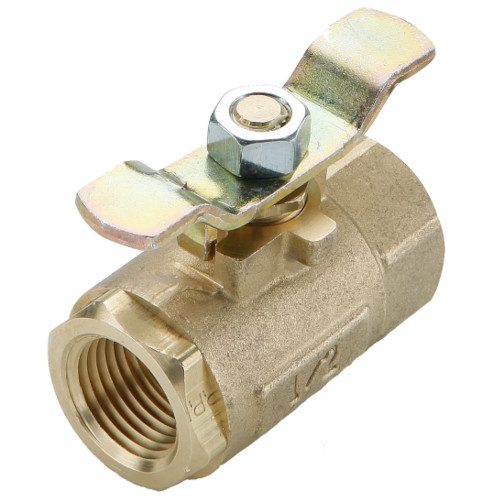

Parker PH-V500P8-04 Ball Valve, Low Pressure

Description

Parker PH-V500P8-04 Ball Valve, Low Pressure

Cross Reference #:

• PH-V500P8-04
• PHV500P804
• V500P804

Specifications:

• Minimum Operating Temperature: 0 ?F, -17 ?C
• Vented: No
• Maximum Operating Temperature: 350 ?F, 176 ?C
• Locking Mechanism: Non-Locking
• Maximum Operating Pressure: 41 bar
• Connection Type: NPT, Straight Thread Solder
• Body Material: Brass
• Ball Material: Chrome Plated Brass
• Seat Material: PTFE
• Connection Size: 1/2 inch
• Connection 1 Solder O.D. (inch): na
• Actuation Type: Manual
• Connection 2 Thread Style: Female Pipe
• Configuration: Female-Female PTF Ports
• Function: 2-Way, Normally Closed, Normally Open
• Connection 1 Thread Size (inch): 1/2
• Handle Type: Tee
• Connection 2 Solder O.D. (inch): na
• Orifice Size: .50 inch
• Maximum Flow Rate: 12 Cv
• Seal Material: PTFE
• Shape: In-Line
• Mounting Type: Panel, In-Line
• Connection 1 Thread Style: Female Pipe
• Maximum Working Pressure (psi): 600
• Handle: Tee Handle
• Product Type: Brass Series 500 Ball Valve
• Operation Type: n/a
• Connection 2 Thread Size (inch): 1/2
• Style: Female to Female
• Shape: In Line

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Parker Hydraulic Valve Division offers a wide breadth of hydraulic valves to meet your specific hydraulic application requirements. Our offering includes hydraulic valve products for mobile and industrial applications. We are committed to offering a broad selection of valves and components with worldwide availability
