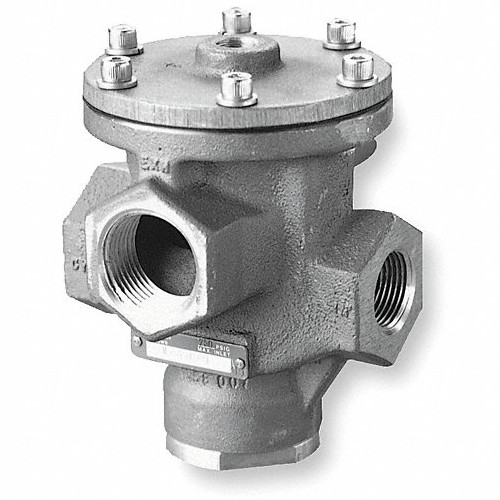

Parker N37431091 Pilor Air Control Valve, Air Return, 1/2 in Outlet/3/8 in Inlet

Description

Parker N37431091 Pilor Air Control Valve, Air Return, 1/2 in Outlet/3/8 in Inlet

Cross Reference #:

• 3FEP4

Specifications:

• Valve Ways and Positions: 3-Way/2-Position
• Valve Actuator / Return: Air Pilot / Air Return
• Valve Port Size: 1/2 in Outlet, 3/8 in Inlet
• Max. CFM – Valves: 3 cfm
• Max. Operating PSI: 140 psi
• Pilot Pressure: 25
• Pilot Port Size NPT (In.): 1/4
• Max. Temp. Range (F): 0 to 125
• Vacuum: External Pilot
• Coefficient of Volume: 3.6
• Length (In.): 3 3/50 in
• Width (In.): 3.31 in
• Height (In.): 4.78 in
• Uses: General Pneumatics Applications

Parker air pilot valve features a remote pilot port with internal pilot return. The high-speed poppet valve is pre-lubricated to allow use with non-lubricated air, however using lubricated air can help increase seal life.

Parker Hydraulic Valve Division offers a wide breadth of hydraulic valves to meet your specific hydraulic application requirements. Our offering includes hydraulic valve products for mobile and industrial applications. We are commited to offering a broad selection of valves and components with worldwide availability
