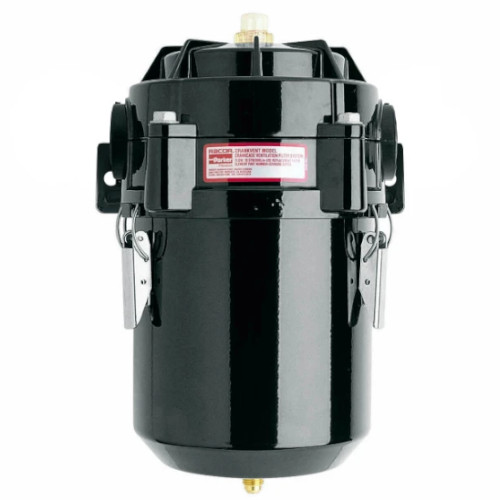

Parker CCV6000-08L Crankcase Ventilation System (Genuine)

Parker CCV6000-08L Crankcase Ventilation System (Genuine)

Cross Reference #:

• RAICCV600008L
  RACCV6000-08L
  Racor CCV6000-08L
  RACCCV6000-08L
  PARCCV6000-08L
  CCV600008L

Applications:

• Diesel Engines

Specification:

• Series Type Cartridge Crankcase Ventilation
  Brand Racor
  Series CCV6000
  Filtered Medium Engine Blowby Gas
  Mounting Integrated. See Product Support tab
  Replacement Element High: CCV55274-08, Ultra: CCV55274-10
  Port Size 1-5/8", 12 SAE
  Drain 1/4" NPT (Engine block check valve fitting)
  Connection Style #6 JIC x 2 (Swivel Fittings)
  Hose I.D. 3/8" (3 ft)
  Material Die cast head, glass filled nylon and black powder epoxy-coated aluminium bowl
  Indicator Type Element Bypass/Change Indicator
  Pressure Regulator Type Integral crankcase pressure regulator
  Heater Optional CCV55462
  Interface Option Remote By-pass Indicator Kit CCV55615-01

Features:

• Racor crankcase ventilation units for closed or open systems
  High efficiency oil separation down to 0.3 micron
  Unique crankcase pressure regulator
  Replaceable high-performance filter
  Depth loading, micro-glass fiber coalescing Vaporbloc? media
  Steel housing with epoxy powder coating
  Drain check valve
  Left or right inlet ports
  Closed units offer bypass or non-bypass options
  Closed units offer pop-up style, or remote indicator of bypass condition
  Compatible with flow rates up to 50 cfm (1.42 m3/m)
  Continuous operating temperature range -40? to 240?F (-40?C to 116?C)

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life. However, we assure you they are entirely brand new and have never been used.
