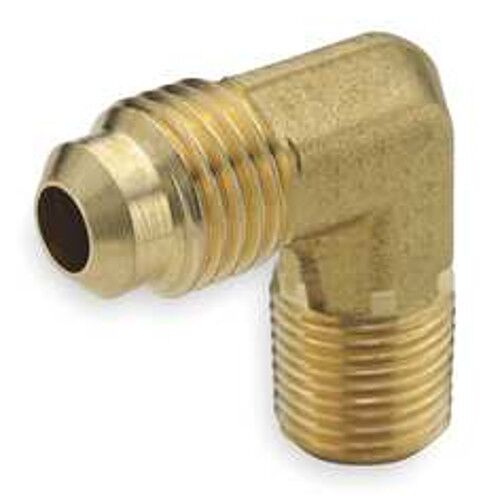

Parker 149F-6-8 Male Elbow, Brass 90° Elbow, 45° Flare Fitting

Description

Parker 149F-6-8 Male Elbow, Brass 90° Elbow, 45° Flare Fitting

Cross Reference #:

• PH-149F-6-8
• PF-149F-6-8
• 149F-6-8
• PH149F-6-8
• PF149F-6-8

Applications:

• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters

Features:

• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared

Specifications:

• Connection 2 Style: Male Pipe
• Connection 1 Style: Flare
• Connection 1 Tube O.D. (inch): 3/8
• Connection 2 Thread Size (mm): na
• Connection 2 Tube O.D. (inch): na
• Connection 2 Thread Size (inch): 1/2
• Shape: 90° Forged Elbow
• Style: Flare to Pipe
• Minimum Operating Temperature: -65 °F, -53 °C
• Maximum Operating Temperature: 250 °F, 121 °C
• Maximum Operating Pressure: 2800 psi, 193 bar
• Tube Material: Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
• Media: Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
• Application: Pumps, Gas Grills, Coffee Makers, Adapters
• Specifications Met: SAE J512, SAE J513
• Body Material: Brass
• Nut Material: Brass
• O-Ring Material: Fluorocarbon
