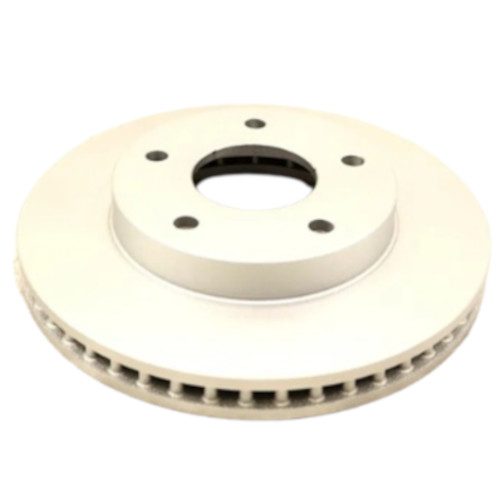

Omnicraft QBRR-109 Brake Rotor, Disc, Rear (Genuine Ford)

Description

Omnicraft QBRR-109 Brake Rotor, Disc, Rear (Genuine)

Cross Reference #:

• OMNIQBRR-109
• OMNQBRR-109
• QBRR109
• General Motors 15733699
• General Motors 18060219
• General Motors 18060691
• Isuzu 8157336990
• Isuzu 8180606910
• Beck/Arnley 083-2773
• Bosch RBR55047
• Brembo 09.7651.10
• Brembo 27009
• Delphi RB535
• Mighty Distributing System 55047
• Universal 101708
• Wagner Brake BD125559
• Wagner Brake BD125559E
• ACDelco 177-890
• Bendix 145182
• Autospecialty AR8638
• Autospecialty AR8638E
• California Drum & Rotor 125559
• Eurorotor 55370
• Guardian 52-125559
• Midas BR2042
• Quality Brand 55047
• Quality Brand Q4011
• VIPAR – Vehicle Indusrty Parts & Manufacturing X51258
• PowerStop AR8638EVC
• BrakeBest 25010540
• BrakeBest 56694
• BrakeBest 56694FZN
• BrakeBest 56694R
• BrakeBest 56694RGS
• BrakeBest 81-125559
• BrakeBest BD125559
• Centric Parts 120.66038
• Centric Parts 120.66038CRY
• Centric Parts 121.66038
• Centric Parts 125.66038
• Centric Parts 125.66038CRY
• Centric Parts 126.66038CSL
• Centric Parts 126.66038CSR
• Centric Parts 126.66038SL
• Centric Parts 126.66038SR
• Centric Parts 127.66038CL
• Centric Parts 127.66038CR
• Centric Parts 127.66038L
• Centric Parts 127.66038R
• Centric Parts 128.66038CL
• Centric Parts 128.66038CR
• Centric Parts 128.66038L
• Centric Parts 128.66038R
• Centric Parts 227.66038L
• Centric Parts 227.66038R
• Centric Parts 320.66038
• WABCO PS125559
• AutoZone 55047
• AutoZone 55047B
• AutoZone 55047DG
• AutoZone 55047DL
• AutoZone DL55047
• Monroe Brakes BD125559
• Advance Auto Parts 145182
• Advance Auto Parts YH145182
• Advance Auto Parts YH145182C
• Advance Auto Parts YH145182P
• American Remanufactured 789-44038
• American Remanufactured 89-44038
• Autoxtra 125559
• Autoxtra 8056694
• Autoxtra AX55047
• Casting Numbers 15163465
• Casting Numbers 211118-C
• Casting Numbers 325281
• Dura Corp BR55047
• Dura Corp BR5504702
• Continental-ContiTech CW29702
• Standard Rotors and Drums 55047
• GREN 672502
• Qualis 55047
• Winhere 6620978
• Winhere YH2417
• Newtek Automotive USA 55047
• Promax 14-55047
• Parts Master P125559
• UAP 2055047
• UAP 55047
• Centric Parts 321.66038
• Bridgestone 7005027
• DuraGo BR55047
• DuraGo BR5504702

Applications:

• Oldsmobile Bravada (1997-2001)
• GMC Sonoma (1998-2004)
• GMC Jimmy (1998-2005)
• Chevrolet S10 (1998-2004)
• Chevrolet Blazer (1998-2005)
• Isuzu Hombre (1998-2000)

Specifications:

• Center Hole Diameter 2.79 IN
• Center Hole Diameter 70.85 MM
• 9565 Conventional
• 9540 No
• Discard Thickness 1.083 IN
• Discard Thickness 27.5 MM
• Harmonize Code 8708.30.5030
• Material Cast Iron
• Mounting Bolt Hole Circle Diameter 4.75 IN
• Mounting Bolt Hole Circle Diameter 120.65 MM
• Mounting Bolt Hole Diameter 0.495 IN
• Mounting Bolt Hole Diameter 12.55 MM
• Mounting Bolt Hole Quantity 5
• Nominal Thickness 1.14 IN
• Nominal Thickness 28.95 MM
• Outside Diameter 10.82 IN
• Outside Diameter 274.85 MM
• Overall Height 2.16 IN
• Overall Height 54.85 MM
• Salability Restrictions No
• Solid Or Vented Type Rotor Vented
• Stud/Lug Hole Quantity 5

Features:

• Genuine Omnicraft Ford
• Proprietary Friction Formulations Specific to Each Vehicle, With High-Tech Materials Such as Kevlar, Ceramics, and Semi-Metallic (applicable as tested)
• Optimum Balance of all Safety and Durability Attributes to Create the Best Product
• Widest Possible Operating Temperature Range
• High-Quality Alternative to the Aftermarket’s Line of Parts
• All Recommended Replacement Parts Included
• Extensive Laboratory and Vehicle Development Testing for each Individual Vehicle Model – Must Pass 27 Different Brake System Tests
• Performed Multiple Times
• Restore New-Vehicle-Like, Optimized Performance and Safety for Specific Vehicles
• Continuous Product Improvement That Comes From Over 100 Years of Experience

Omniccraft is a trusted brand in the automotive industry, known for delivering high-quality replacement parts designed to meet the diverse needs of various makes and models. As a reliable choice for both Ford and non-Ford vehicles, Omnicraft combines precision engineering with advanced manufacturing processes to produce components that prioritize durability, performance, and compatibility. Backed by the assurance of a reputable brand, Omnicraft parts offer a cost-effective solution without compromising on quality, providing customers with the confidence to maintain and repair their vehicles with components that meet or exceed industry standards. Whether for routine maintenance or repairs, Omnicraft stands as a dependable choice for automotive enthusiasts seeking genuine, reliable parts for a wide range of vehicles.
