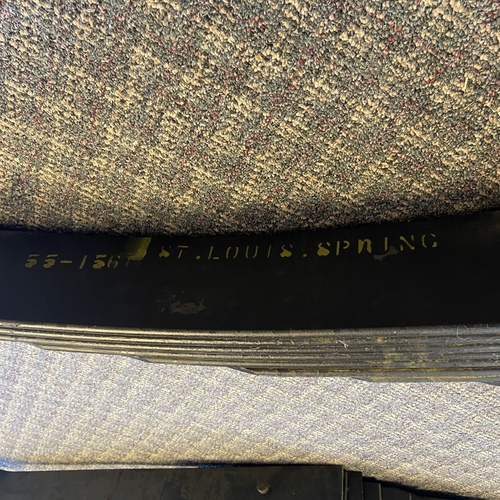

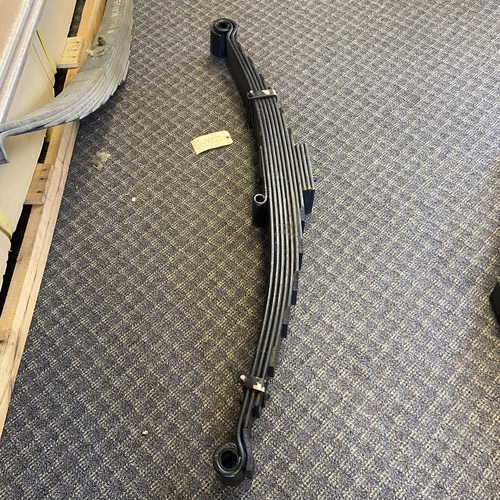

Navistar International 55-156 Leaf Spring Assembly, 8 Leaves

Navistar International 55-156 Leaf Spring Assembly, 8 Leaves

Front Eye to Eye

Cross Reference:

• 1667482C91
• 404941

Specifications:
Number of Leaves: 8
Location: Front
OEM 1667482C91, 40-4941
Width 4"
Length 54"
PL-1 S.E. length 25"
PL-1 L.E. length 29"
S.E. Eye Type Berlin
S.E. Bushing RNK
L.E. Eye Type Berlin
L.E. Bushing RNK
Arch 4 3/16"
Leaves Shockeye/8/4PD
Grading Shockeye/323 8/447 4PD/447
Pack Thickness: 5 3/4"
Capacity 6,350 lb

162.6 lb

Applications:

• Fire Apparatus Pierce
• Navistar International 1000 9,000-20,000 lb axles only
• Navistar International 2000 9,000-20,000 lb axles only
• Navistar International 4000 9,000-20,000 lb axles only
• Navistar International 7000 9,000-20,000 lb axles only
• Navistar International Bus Chassis10,000-14,000 lb axles only
• Navistar International Conventional 10,000-14,000 lb axles only

International acquired by Navistar,is a leading manufacturer and solutions provider for the medium-duty, heavy-duty and severe-service truck segments.
