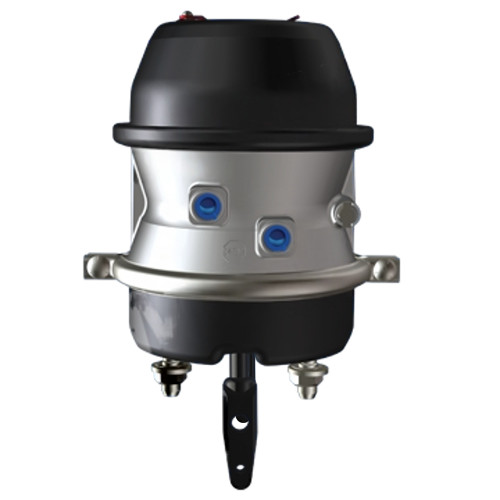

MGM Brakes 3230951 Brake Chamber, Model TR-LP3 3030

Description

MGM Brakes 3230951 Brake Chamber, Model TR-LP3 3030

Cross Reference #:

• 3230951X
• MERITOR A893276D30
• 080066149196

Features:

• Tamper Resistant Design
• “Long Life” Power Spring
• Center Hole Diaphragm
• Epoxy-Coated Head,Non-Pressure Chamber and Lower Push-Rod Assembly
• Epoxy-Coated Return Spring
• Center Hole Shield
• Square Port Bosses (Long Stroke Identification)
• Weatherseal Plug
• Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge On All Other Sizes)
• Polymer Push-Rod Guides
• Heavy-Duty Nylon Reinforced Diaphragms
• Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
• Stroke Alert
• Externally Stored Release Bolt
• 3″ (76.2 mm) Long Stroke
• Molded Nitrile Rubber Air Seal
• Composite Guide -Corrosion Fighter Technology

Specifications:

• Aftermarket Unit
• Port Size: 3/8-18 NPTF
• Welded Yoke
• Stroke (in.): 3.00
• Service Size: 30
• Spring Size: 30

MGM Brakes, a division of Indian Head Industries, Inc., has been a global leader in the development of spring parking brake actuator technology and electronic brake monitoring systems. MGM Brakes actively supports the commercial vehicle industry in the truck, trailer, transit bus, school bus, military and vocational markets with the most complete line of drum and air disc brake actuators.
