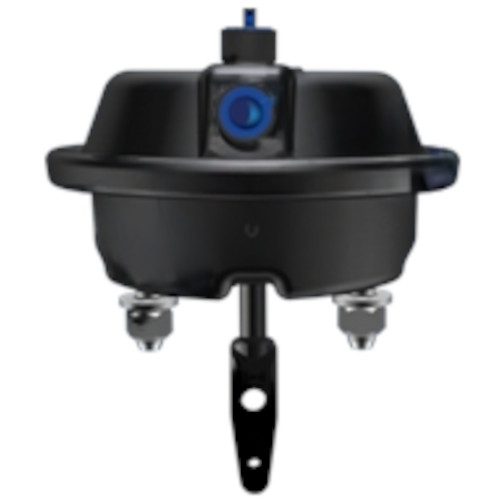

MGM 1621901 Brake Chamber, 2.5 Stroke, CS20L

Description

MGM 1621901 Brake Chamber, 2.5 Stroke, CS20L

Cross Reference #:

• MGM1621901
• MERITOR V913276T20
• MERITOR A95 3276T20
• WA20SC3
• 85103654
• K124732
• K124745

Specifications:

• Aftermarket Unit
• Mounting Bolt Thread: 5/8-11
• Mounting Bolt Length (in.): 1.530
• Port Size: 3/8-18 NPTF
• Sealed
• Welded Yoke
• Stroke 2.50″ (63.5 mm)
• Weight lb (kg) 6.80 lb (3.1 kg)
• A 4.37″ (111.0 mm)
• B 3.63″ (92.0 mm)
• C 7.00″ (177.8 mm)
• D 4.75″ (120.7 mm)
• E 5/8″ – 11 UNC
• Inlets 3/8″ – 18 NPTF
• Y 2.25″

Features:

• Formed Steel Pressure Cap -Epoxy-Coated (CS20 Models have Zinc Iron Chromate Coating)
• Formed Steel Non-Pressure Chamber -Epoxy-Coated
• Heavy-Duty Nylon Reinforced Diaphragms
• Top and Side Air Ports -3/8″ NPTF
• Center Hole Shield

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

MGM Brakes, a division of Indian Head Industries, Inc., has been a global leader in the development of spring parking brake actuator technology and electronic brake monitoring systems. MGM Brakes actively supports the commercial vehicle industry in the truck, trailer, transit bus, school bus, military and vocational markets with the most complete line of drum and air disc brake actuators.
