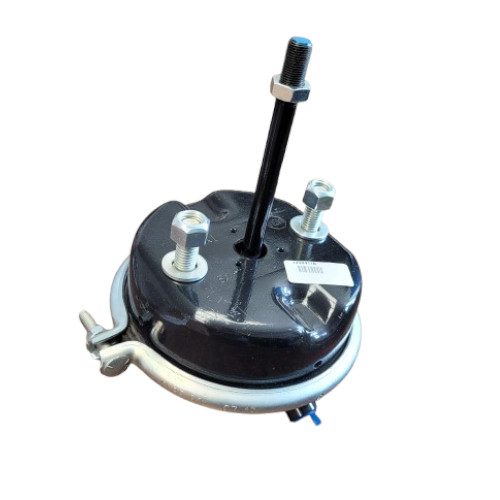

Service Brake Chamber Type 30, 2.5″ Stroke, 6.25″ Rod (Genuine)

Service Brake Chamber Type 30, 2.5" Stroke, 6.25" Rod (Genuine)

Cross Reference #:

• T30
• C30
• Automann 179.SC30
• Bendix 5007121N, 800826
• Euclid E30S, EBC30S
• MGM Brakes 1430001
• MGM Brakes 1430411
• Midland KN36300

• BWP M-459
• Euclid 9141051
• Haldex 129300247
• Holland 000242A
• JET HF1020
• Kelsey Hayes 1044301
• MCI 15510724
• Midland 19300
• Prior SC30
• Velvac 030021
• Bendix 225927
• Meritor D70-3276-D-30
• Fontaine 50467002
• Cheetah 76589
• Eaton 1008037-01
• AM General SF5571012
• Anchorloc 127300000
• Beall Trailers 3012173
• Berg Manufacturing 19340154
• Brenner Tank Inc CB-A-50
• Caterpillar 1V9613
• Crane Carrier 50A-0056
• Crown Coach 2685-658
• Dakota Manufacturing 15-090
• Dana Commercial Vehicle Service Parts 222002
• Dexter 34-57
• Dorsey Trailer 1191760
• Fruehauf 4017-37-91-1
• GMC 15513603
• Ford E6HT2225DA
• Hyundai 10014068
• Volvo 24424199
• Iveco AN30S
• Oshkosh 1370730
• Trailmobile 17-37-120B
• Hendrickson 004200
• Navistar 108242R91
• Ottawa 53140103
• Paccar Parts 03-02909
• Rockwell International D70-3276-D-30
• Terex 0329023085
• Thomas Built Buses 149667
• Mack 19QE4121
• Freightliner 165950
• Kenworth 03-02909
• Peterbilt 03-02909
• Tectran 150-300
• Peerless 221-70-PR
• Timpte 30SD-161115
• Di-Pro Inc. 10500
• Great Dane Trailers 40502124A
• MGM Brakes 1430001
• Ryder 3004507
• Watson & Chalin 19460-02
• Landoll 3-128-010010
• Lodal 9962896
• Ravens Inc J08417
• Silver Eagle Mfg 24884
• Standard Forge 217030-040-004
• Stoughton Trailers 04-60231
• Trail King Industries 712002016
• Tramec 53330
• Utility Trailer Manufacturing 3-1850-36
• Volvo GM Heavy Truck 129300223
• World American WA30SC
• Wabash National 12600053
• Grove 7348000132
• NAPA MA36305
• Wagner 926030
• Alliance Torque Converters N42A-30SCD
• RANGER BRAKE BSC-30
• OTR SC3000
• BWP M459
• EUCLID 9141051
• Euclid E-BC30S

Applications:

• S‑cam drum brake systems
• Class 7–8 semi‑tractors (Freightliner, Kenworth, Peterbilt, Volvo, Mack, International, Western Star)
• Heavy‑duty trailers (dry van, reefer, flatbed, tanker, dump)
• Vocational trucks (dump trucks, mixers, roll‑offs, refuse/garbage trucks)
• Construction and municipal vehicles

Specifications:

• Brand: MGM Brakes

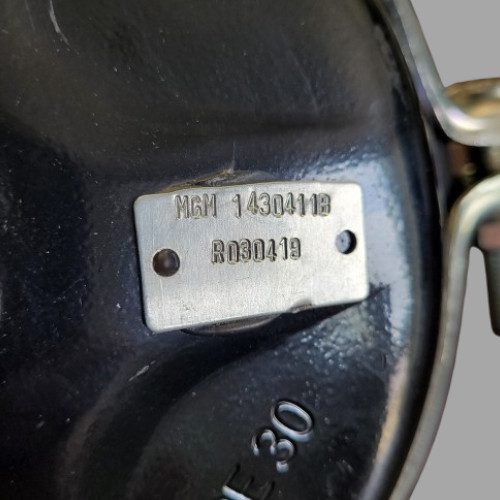

• Part# 1430411
• Notes: The "B" in the part number is from the manufacturer meaning Bulk.
• Condition: New
• Stroke (in.): 2.50

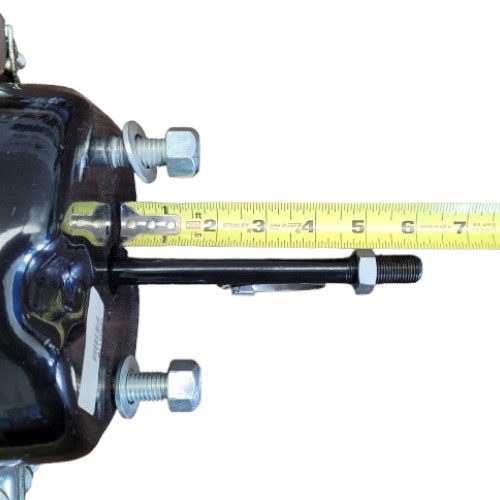

• Push-Rod Length: 6.25", not fully threaded
• Port Size: 3/8-18 NPTF
• S-Cam Brakes (Drum)
• Std Stroke - Service Chambers
• Service Size: 30
• Stroke 2.50" (63.5 mm)
• Weight lb (kg) 10.70 lb (4.9 kg)
• 4.43" (112.5 mm)
• 3.69" (93.7 mm)
• 8.27" (210.0 mm)
• 4.75" (120.7 mm)
• 5/8" - 11 UNC
• 5/8" - 18 UNF
• Inlets 3/8" - 18 NPTF
• Min. (aftermarket unit only) 8.00" (203.2 mm)

Features:

• Formed Steel Pressure Cap -Epoxy-Coated
• Formed Steel Non-Pressure Chamber -Epoxy-Coated
• Heavy-duty Nylon Reinforced Diaphragms

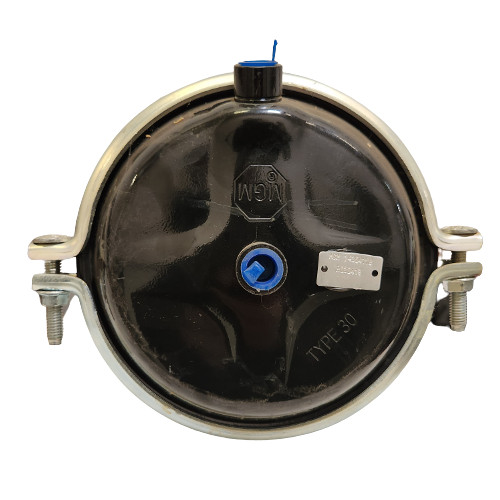

• Top and Side Air Ports- 3/8" NPTF
• Center Hole Shield (Except type 12 and type 16)

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

MGM Brakes, is a leading manufacturer of spring brake actuators and brake products for commercial vehicles, specializing in heavy-duty braking solutions. Founded in 1956, MGM has built a reputation for producing reliable, durable brake systems that enhance safety and performance in demanding environments. Their products, including a wide range of air brake actuators, are known for high-quality engineering and are trusted by fleet operators across North America. The company places a strong emphasis on innovation, with ongoing research and development to advance brake technology and meet evolving industry standards. MGM Brakes' commitment to quality and safety has established them as a trusted provider of brake components for buses, trucks, and other heavy-duty vehicles.
