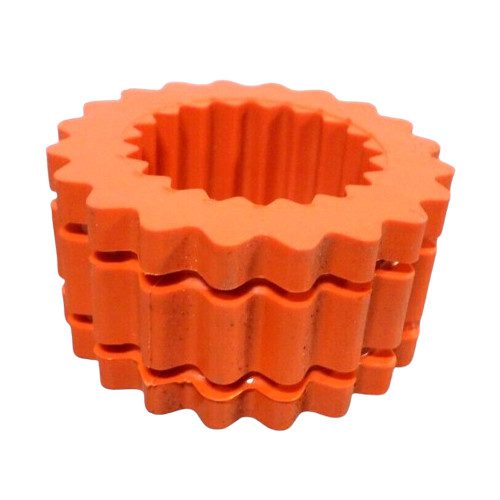

Martin 6H Coupling Sleeve, Quadra-Flex, Type H

Martin 6H Coupling Sleeve, Quadra-Flex, Type H

Cross Reference #:

• 100814322

Specifications:

• RPM [MAX] 6,000 rpm
• SLEEVE TYPE H
• OUTSIDE DIA. 3 3/4 in
• COLOR Orange
• COUPLING SIZE 6
• TEMPERATURE RANGE [MIN] -65 ?F
• TEMPERATURE RANGE [MAX] 250 ?F
• MATERIAL Hytrel?
• HP @ RPM 50 hp @ 1800 rpm
• TORSIONAL STIFFNESS (INCH POUNDS/RADIAN) 0
• INSERT STYLE One Piece
• TORQUE RATING [MAX] 1,800.0 in lb
• WEIGHT 0.44 LB

Features:

• Two flanges with internal teeth that engage an elastomeric flexible sleeve
• Easy installation and maintenance free
• No lubrication
• Dampens vibrations and controls shock
• Torsionally soft and double engagement

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Martin Sprocket & Gear was founded in 1951 by Joe Martin Sr. Over the decades Martin has expanded through machining, fabrication, forging, casting, powdered metal technology and machined & injection molded plastic of power transmission components, material handling products and industrial hand tools.
