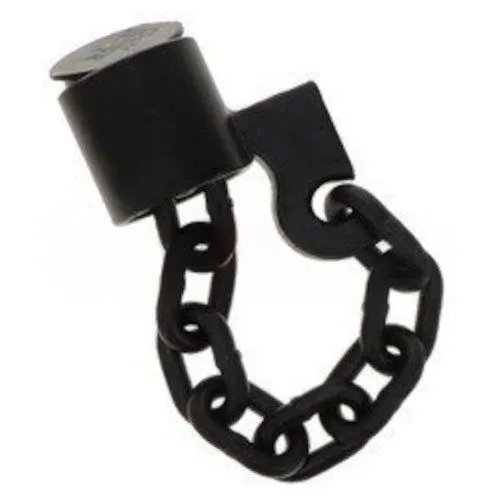

Kinedyne 10421 Floor Chain Tie Down w/ Bulletin, Grade 70

Description

Kinedyne 10421 Floor Chain Tie Down w/ Bulletin, Grade 70

Applications:

• Kinedyne’s floor chain tie-down is for use on steel frame flatbed trailers with standard hardwood decks.

Cross Reference #:

• KI10421
• KIN10421
• KN-10421

Specifications:

• Chain Length 12 in (30.48 cm)
• Chain Size 1/2 inch – 5/8 inch
• Color Black
• Finish Painted
• Grade Hight Test Grade 43
• Length 31 in (78.74 cm)
• Length (in.) 4
• Material Steel
• Quantity 1
• Type Replacement Foot
• Weight (lbs) 2.8
• Width 19 in (48.26 cm)
• Width (in.) 4
• Working Load Limit (lb) 11000
• Working Load Limit (lbs) 5000

Features:

• It is a self-storing, convenient anchor point for securing loads.
• Welds to trailer cross member.
• It mounts flush with the standard hard wood trailer deck to prevent interference during loading or unloading.
• Working Load Limit: 5,000 lbs./2270 kgs.
• Minimum weld requirements are 1/4″ filet weld around entire contact surface and 1/8″ penetration.
• Weight: 2.8 lbs., 1.3 kgs.

Kindyne is the leading cargo securement and cargo control company with operations in the United States, Canada, and Mexico. Over the past 50 years, Kinedyne has engineered several innovative products evolving cargo control to help make our roads safe. In addition to manufacturing, we employ a team of specialized engineers who design, engineer, and advance our solutions for the cargo securement industry.
