JOST A401.G.17 Landing Gear Set, Inside Mount, 17″ Travel, Cushion Foot 10″x10″

Description

JOST A401.G.17 Landing Gear Set, Inside Mount, 17″ Travel, Cushion Foot 10″x10″

Cross Reference #:

• A401RG17
• A401R-G-17
• A400 Series
• JOSA401G-17-08
• A401G1708
• A401G.17.08
• A401G17
• 30751040
• A401.G.17.08
• 13200695
• JIA401-G-17LEGS
• A401-G-17K
• A401G-17
• A401G-17-08
• A401G17K

Features:

• Internal gearbox protects gears and prevents shaft misalignment.
• Cover and bushings sealed to keep moisture out.
• Double “D” style shaft allows crank force to go directly into the gearbox, not torquing the bolt.
• 10 bolt mounting pattern adds mounting rigidity.
• Reinforcing strap at the bottom of the upper housing for added strength.
• Austempered ductile iron gears will not wear out.

Specifications:

• Gear Box Shape: Internal Gear Box
• Brand Name: Jost
• Model: A401
• Travel: 17″
• Type: Cushion Foot
• Length (in): 31.625″ Retracted
• Capacity: 55K
• Number of Mounting Holes: 10 Holess
• Height (in): 48.625″ Extended
• Outer Tube Length: 25″

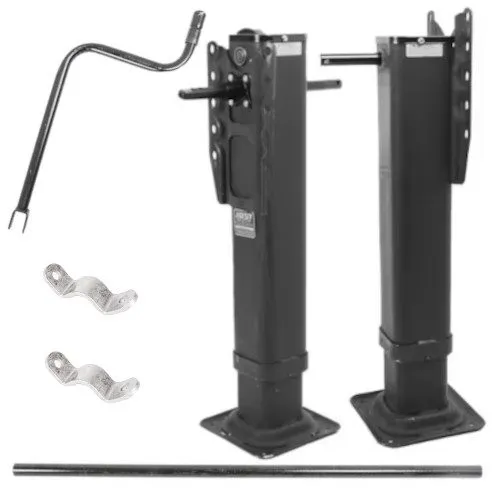

Kit Includes:

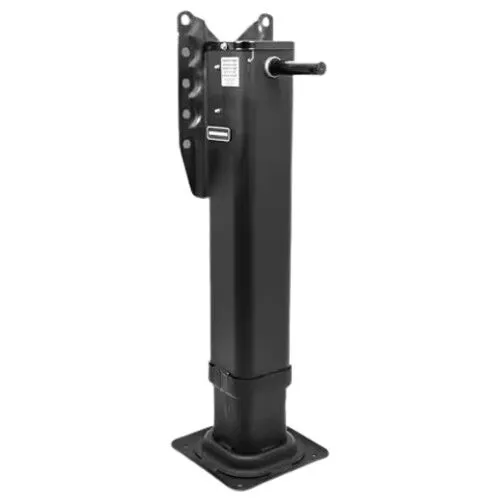

• (1) – A401L.G.17 – Landing Leg, Non-Gear Side, 17″ Travel, Inside Mount, Cushion Foot 10″x10″ Standard Shoe

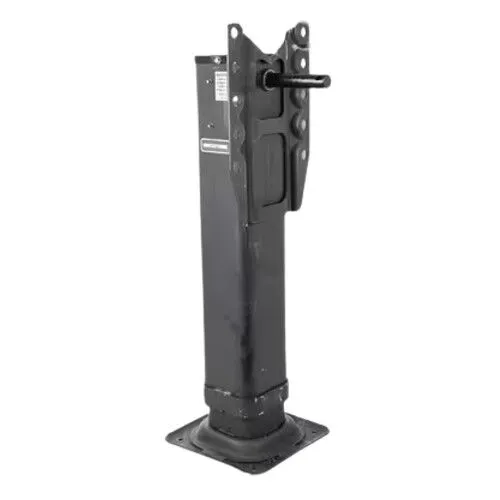

• (1) – A401R.G.17 – Landing Leg, Gear Side, 17″ Travel, Inside Mount, Cushion Foot 10″x10″

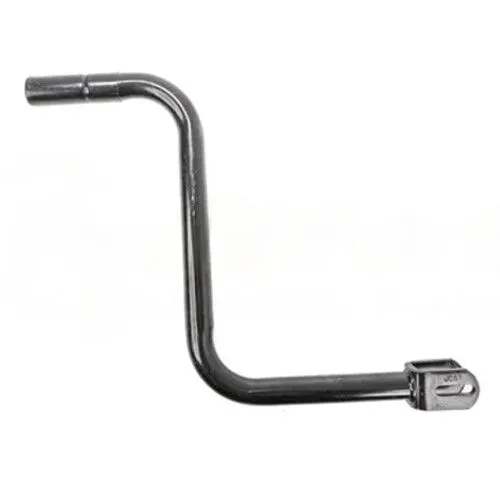

• (1) – C10592.2- Crank Handle, Vertical 8.25″ Length

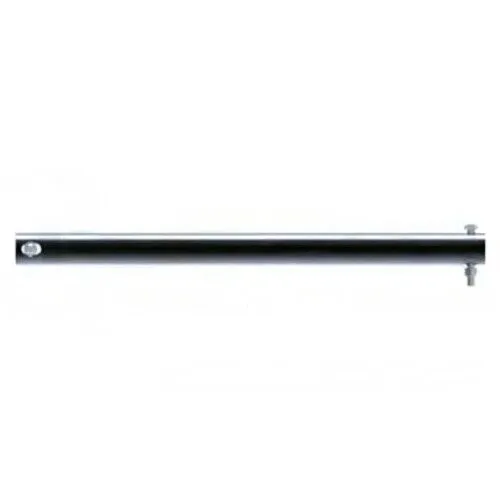

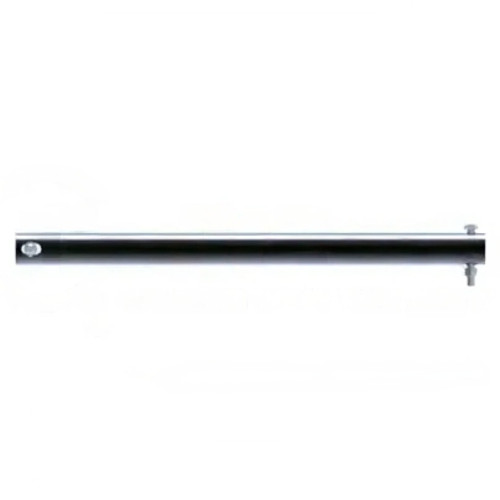

• (1) – B10363.56.5 – Cross Shaft, Landing Gear, Inside Mount, 56.5″

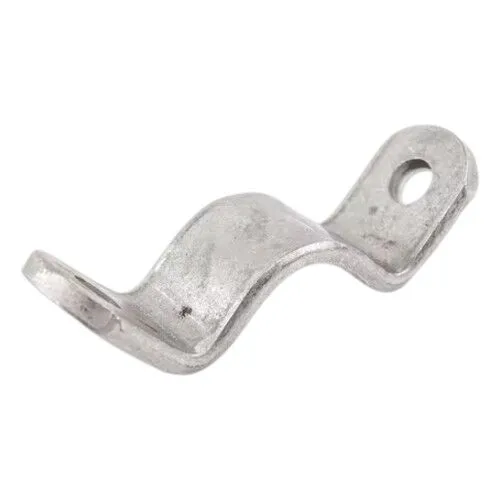

• (2) – C10108- Brace Lug, Mounting Bracket, “W” Shape Ears

JOST International is proud to be a world market leader and international supplier for the commercial trucking industry. As a pioneer for fifth wheel couplings and landing gear with internal gears, we have grown our company through the decades with innovative systems and sensor-controlled solutions that make operations easier, safer, and efficient.
