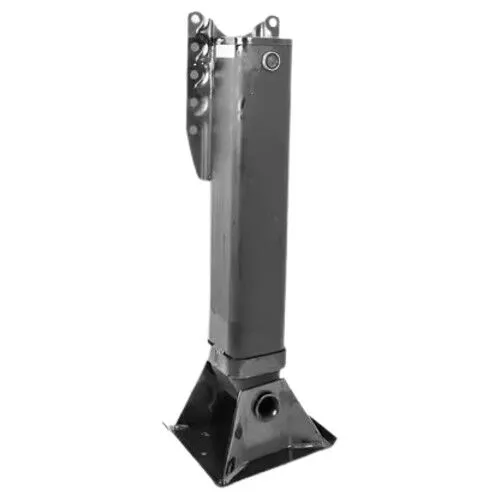

JOST A400L.T.17 Landing Leg, Non-Gearside, 17″ Travel, 10 Bolt, 10″x10″ Standard Sand Shoe

Description

JOST A400L.T.17 Landing Leg, Non-Gearside, 17″ Travel, 10 Bolt, 10″x10″ Standard Sand Shoe

Cross Reference #:

• OTR-A400-NG-17
• A400LT17
• A400LT-17
• A400-T-17LH
• LG2T01720000000

Features:

• A400 Series
• Reinforcing strap at the bottom of the upper housing provides additional strength
• Double “D” style shaft transfers crank force directly into the gearbox, not torquing the bolt
• Maximum static load capacity of 160,000 lbs when properly braced (as a set)
• Lifting capacity of 55,000 lbs with 100 ft-lbs of input torque (as a set)
• Side load capacity of 29,000 lbs (as a set)
• Non-Gearside leg
• Outside mount
• 10″ x 10″ standard sand shoe
• Hardware included
• Meets all TTMA and AAR specifications

Specifications:

• Height: 10
• Width: 11.2
• Length: 35.32
• Weight: 85.80
• Lifting Capacity: 55000 lb
• Static Load Capacity: 160000 lb
• Side Load Capacity: 29000 lb
• Leg Type: Non-gear side leg
• Mounting Bolt Count per Leg: 10
• Travel: 17 in
• Extended Length: 48.63 in
• Retracted Length: 31.63 in
• Upper Leg Length: 24.94 in
• Foot Type: Sandshoe
• Foot Size (H x W x L)4.5″ x 10″ x 10″
• Hardware Included: No
• Gear Ratio: low gear – 32 turns = 1″ travel; high gear – 3.5 turns = 1″ travel
