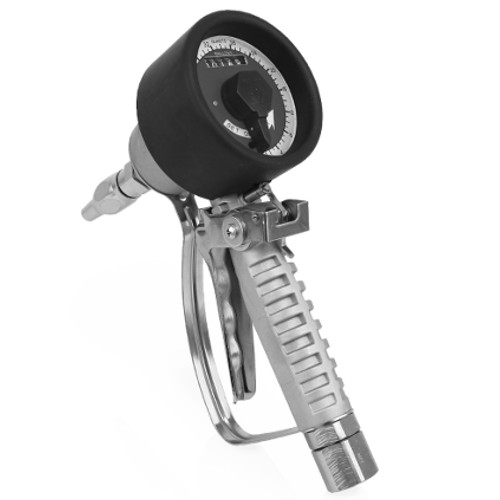

Graco 24V052 Preset Meter 60 QTS w/Nozzle/Extension Kit – Short Rigid Extension

Description

Graco 24V052 Preset Meter 60 QTS w/Nozzle/Extension Kit – Short Rigid Extension

Cross Reference #:

• GR24V052
• EQGR24V052

Specifications:

• Compatible Material: Oil, Antifreeze
• Dispense Type: Preset
• Display Type: Mechanical
• Extension Type: Rigid
• Includes: Bare Meter, Nozzle Kit
• Inlet Size (in): 1/2
• Inlet Thread Type: NPT
• Maximum Flow Rate (GPM): 8
• Maximum Operating Temperature (?F): 160
• Maximum Working Pressure (MPa): 10
• Meter Accuracy (%): ?1%
• Meter Pressure Loss (psi): 30
• Metering Gun Weight (lb): 3.5
• Minimum Operating Temperature (?F): -50
• Nozzle Type: Manual
• Outlet Size (in): 1/2
• Outlet Thread Type: NPT
• Recommended Environment: Indoor, Outdoor
• Trigger Lock: Locking
• Type: Mechanical Metered Dispense Valve
• Valve Type: Metered
• Wetted Material: Brass, Aluminum, Stainless Steel, TPE

Features:

• Preset meter automatically shuts-off flow when preset quantity has been dispensed
• Impact-resistant shroud resists against scratches and protects knob and dial from damage
• Dial and face design made simple, easy to read and set
• Durable aluminum cast housing is balanced and lightweight for a comfortable grip
• Built-in totalizer to manage material usage
• Inlet 1/2 in. NPT with swivel
• Measures fluid in quarts
• Features short extension with oil nozzle

Graco designs and manufactures thousands of fluid handling products and solutions for the industries we pursue around the world.
