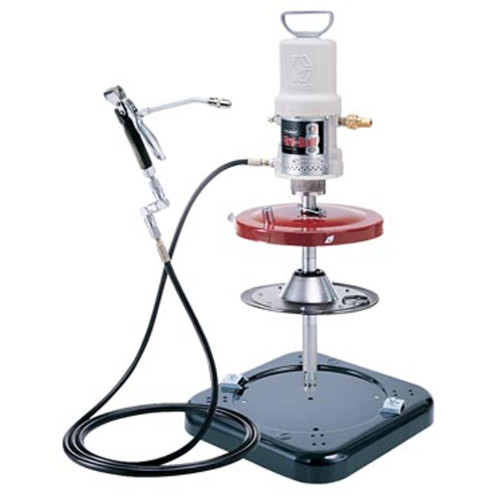

Graco 225006 Grease System, Fire-Ball 300 Series 50:1 120 lb, Portable Package w/ Caster Base

Description

Graco 225006 Grease System, Fire-Ball 300 Series 50:1 120 lb, Portable Package w/ Caster Base

Cross Reference:

• GR225006
• EQGR225006

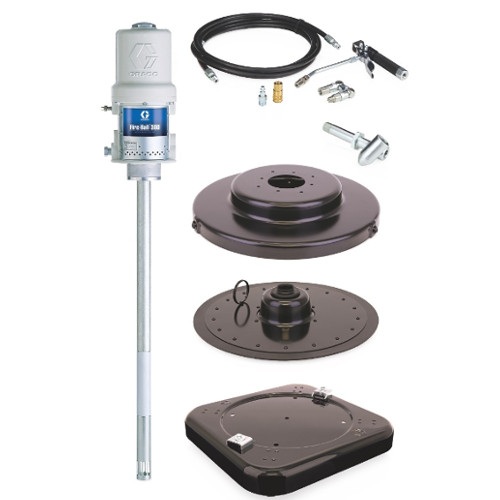

Includes:

• 50:1 Fire-Ball pump
• Follower plate
• 12′ x 1/4″ fluid hose
• drum cover
• fitting kit
• caster base
• control handle
• Z swivel.

Specifications:

• Size: 120 lb Portable
• Type: 50:1
• Flow-Rate: 5lb/Min
• Weight: 62.00 LBS
• Flow Rate – 1.19 lb/min.
• Maximum Fluid Pressure – 8400 psi
• Operating Range – 30-140 psi
• Air Inlet Port – 3/8″
• Outlet Port – 1/4″
• Line Length – 250 ft.
• Dispense points – 1 to 2

Features:

• Reliable Flow – A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable – Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs – Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life – In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime – Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing – Non-metallic poppet valves offer positive sealing performance, even with contaminated “dirty” air environments for long life without repair.
• Reduced Icing – Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant – Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Graco designs and manufactures thousands of fluid handling products and solutions for the industries we pursue around the world.
