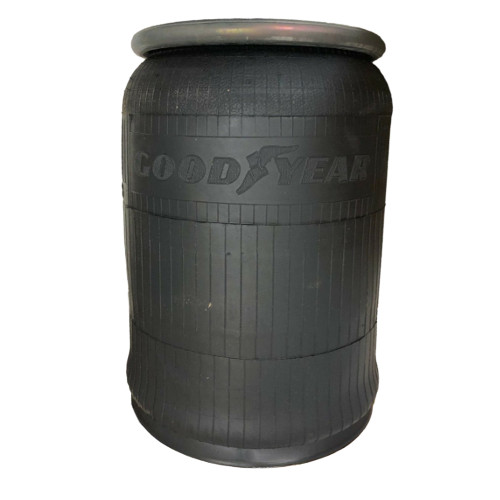

Goodyear 1R12-568 Air Spring (Genuine Goodyear)

Description

Goodyear 1R12-568 Air Spring (Genuine Goodyear)

Cross Reference #:

• Continental ContiTech 9 10-19 P 472
• ContiTech Order # 64339
• Automann 1DK23L-8852
• Firestone No. W01-358-8852
• Firestone Style 1T15M-9
• FleetPride AS8852
• Goodyear 1R12-568
• Goodyear Flex No. 566243066
• Navistar/Fleetrite 1R12-1058
• Peterbilt 03-07887
• Taurus 6364
• Triangle AS-8472
• TRP AS88520
• Triangle Spring: 8472
• Firestone: 8852
• Firestone: 8864
• Conti Tech: 64339
• Peterbilt: 03-07887
• Firestone: 03-08716
• Conti Tech: 910-19P472
• Sirco: AS8852
• Sirco: AS-8852
• Euclid/Meritor Aftermarket: E-FS8852
• Euclid/Meritor Aftermarket: FS8852
• Firestone: W01-703-8865

Specifications:

• Top Plate Hole/Stud: 3
• Bottom Plate Hole/Stud: 1
• Top Plate Diameter: 9
• Bottom Plate Diameter: 9.8
• Collapsed Height: 6.7
• Flexmember: 566-24-3-066
• Piston: 566-20-7-235
• Piston Type: C
• Goodyear Trimmed: 1R12568

Goodyear Air Springs is a leader in the North American air spring suspension market, with a strong global reputation, and offers best-in-class performance, quality, and dependability. Our heritage is traced back to the 1950’s where we invented the Rolling Lobe Air Spring, the most popular air spring used in the Commercial Vehicle Industry.
