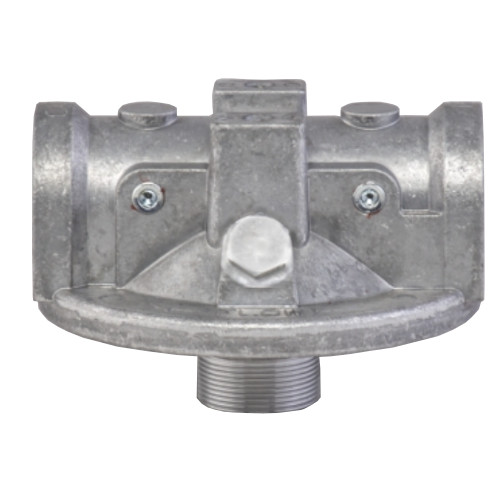

Donaldson P576557 Head Assembly, Hydraulic, Lube Filter Head 1-1/4NPT

Donaldson P576557 Head Assembly, Hydraulic, Lube Filter Head 1-1/4NPT

Cross Reference #:

• Donaldson P563268

Specifications:

• Length: 5.39 inch (136.8 mm)
• Height: 3.70 inch (94 mm)
• Inlet Size: 1 1/4 NPT
• Outlet Size: 1 1/4 NPT
• Filter-to-Head Thread: 1 1/4 BSP/G & 1 1/2-16 UN
• Bypass Valve: Yes
• Bypass Valve Setting LR: 25 psi (1.72 bar)
• Series: SP50/60
