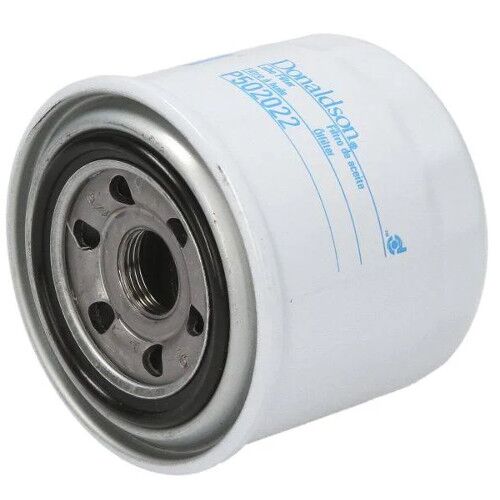

Donaldson P502022 Oil Filter, Spin-On

Description

Donaldson P502022 Oil Filter, Spin-On

Cross Reference #:

• AC-Delco AC042
• AC-Delco PF1238
• AC-Delco PF2121
• AC-Delco PF2123
• AC-Delco PF41
• AC-Delco ST
• AC-Delco X15
• AGCO 72213533
• AGCO 72257947
• Alco Filters SP892
• ALCOA-MARINE DO721
• ALCOA-MARINE TO136
• AMC DO721
• AMC TO136
• AMERICAN-PARTS 865
• AMSOIL ASF57
• AMSOIL EAO58
• Ashika 1002214
• Ashika 1008898
• ATLAS M-59
• AUTOPAR FE147
• AUTOPRO 2374
• Baldwin B131
• Baldwin B166
• Baldwin B228
• Beck/Arnley 041-8798
• BEDFORD 7984256
• BIG A 866
• BIG A 92374
• BMW 11 42 1 258 039
• BMW 11 42 1 278 059
• BMW 11 42 9 061 197
• BMW 11421250534
• BOBCAT 5411642211
• BOMAG 05710631
• BOMAG 5710621
• BOMAG 5710631
• Bosch 0986AF9004
• Bosch 451102001
• Bosch 451102056
• Bosch 451102901
• Bosch 451103019
• Bosch 451103021
• Bosch 451103026
• Bosch 451103043
• Bosch 451103049
• Bosch 451103050
• Bosch 451103084
• Bosch 451103096
• Bosch 451103127
• Bosch 451103901
• Bosch 72107
• Bosch 9450732010
• Bosch O133
• Bosch O213
• Bosch P2056
• Bosch P3050
• Bosch P3084
• Canadian Tire 17-1744-6
• CARCARE OF3816
• CARQUEST 85394
• CASE 6911953
• CASE-IH 6911952
• CASITE CF3614
• CATERPILLAR 3I-1191
• CATERPILLAR 9Y4492
• CENEX CO2816
• CHAMPION OF23
• CHAMPION OF301
• CHAMPION OF31
• CHAMPION OF417
• Champion Laboratories PH2816
• Champion Laboratories PH966
• CITROEN 75921440
• CITROEN MLS000155
• CLAAS 656834
• CLEAN DO337
• COMPAIR 98262135
• COMPAIR 98262136
• COOPERS LSF5132
• COOPERS Z782
• CROSLAND 2066
• CROSLAND 306
• CROSLAND 367
• CROSLAND 576
• Daihatsu 1560187103N
• Daihatsu 1560187103NEW
• Daihatsu 1560187201N
• Daihatsu 1560187203N
• Daihatsu 1560187702
• Daihatsu 1560187702000
• Daihatsu 1560187702N
• Daihatsu 1561073000
• DANIEL-DOYEN DOF2300
• DELUXE WD427
• DEUTSCH D364
• DEUTZ 1163420
• DEUTZ A04H4123
• Donaldson P502022
• Donaldson P550534
• Donit 431078
• DYNAPAC 748620
• EATON 440002266
• EVERGARD E183
• FACET L-183
• FEDERAL-MOTORS FMS2108
• FEDERAL-MOTORS FMS2110
• FIAAM FT4531
• FIAAM FT4538
• FIAAM FT4985
• FIAT 1164626
• FIAT 1174416
• FIL FILTER ZP63
• Filters Incorporated OF3816
• Filtron OP539
• FIRST-AUTOMOTIVE L40239
• FISPA FOE280
• Fleetguard LF3338
• FLEETRITE LFR-83338
• FLEETRITE LFR83310
• FLEETRITE LFR83338
• FLEETRITE LFR83766
• FLEETRITE LFR84014
• Ford 5000480
• Ford 5003914
• Ford 5003929
• Ford 5003930
• Ford 5003967
• Ford 5005572
• Ford 5008720
• Ford 5008721
• Ford 5008722
• Ford 5012555
• Ford 6066094
• Ford 6066095
• Ford 6066096
• Ford 741M6714BA
• Ford 741M6714CA
• Ford 81SM6714A3A
• Ford 81SM6714A4A
• Ford A700X6714JA
• Ford A770X6714ABA
• Ford A770X6714ACA
• Ford A770X6714BA
• Ford A770X6714DA
• Ford A770X6714NA
• Ford A770X6714SA
• Ford A770X6714TA
• Ford A780X6714EA
• Ford A810X6714JA
• Ford A810X6714KA
• Ford A810X6714LA
• Fram C108
• Fram PH2954
• Fram PH3816
• Fram PH4377
• Fram PH46
• Fram PH966B11
• FSA C1123
• GEHL 132023
• GENERAC 075755
• GENERAC 75755
• General Motors GM 25014818
• General Motors GM 650352
• General Motors GM 650364
• General Motors GM 650365
• General Motors GM 650373
• General Motors GM 650400
• General Motors GM 6696776
• General Motors GM 7884256
• General Motors GM 7965049
• General Motors GM 7965051
• General Motors GM 7973235
• General Motors GM 7973429
• General Motors GM 90027778
• General Motors GM 93156299
• GONHER GP3816
• GOODWILL OG524
• GRAND PRIX PH2816
• Grease Monkey GM346
• Group 7 V183
• GUD Z166
• GUD Z500A
• HARMO S806
• HASTINGS LF155
• HAVOLINE TFC-519
• HENGST H10W05
• HENGST H901W
• IAPCO A-0210-002
• IAPCO OF20
• INGERSOLL-RAND 59769265
• IPD 10013
• ITM 11-11300
• ITM 11-12300
• ITM 111-2300
• Japanparts FO214S
• Japanparts FO898S
• JAPKO 10214
• JAPKO 10898
• JC-PREMIUM B10002PR
• JIFFY LUBE HL3816
• JIFFY LUBE JL183
• JIFFY LUBE L10183
• JLG 7016331
• JLG 7041558
• John Deere AM10107
• KAESER 61901
• KAESER 619010
• KAGER 100136
• KENDALL K19
• KHD 1164626
• KHD A04H4123
• KNECHT AW141
• KNECHT OC198
• KNECHT OC78
• KNECHT OC84
• KRALINATOR L210A
• KRALINATOR L33
• KRALINATOR L65A
• LAZORLITE U111600
• LEE LF-2816HP
• LEYLAND 12G400
• LEYLAND BLM107020
• LEYLAND CDU1179
• LEYLAND GFE117
• LEYLAND GFE139
• LUBER-FINER PH2816
• Lucas Girling F6496
• M-FILTER TF311
• Magneti Marelli 152071758762
• MAHLE AW138
• MAHLE AW87
• MAHLE OC198
• MAHLE OC78
• MAHLE OC84
• Mann W712/20
• Mann W811/81
• Mann W81181
• MANN & HUMMEL W7126
• MANN & HUMMEL W71999
• MANN & HUMMEL W81181
• Master Parts PH-2816
• Mechanics Circle MOF 3816
• MELROE 6665603
• MIGHTY M183
• MOBIL L10183
• MOTORCRAFT EFL283
• MOTORCRAFT EFL84
• MOTORCRAFT FL 262
• MOTORCRAFT FL 776
• MPA 4010
• MULLER FO239
• MWM-MURPHY MD43813
• NAPA 1288
• NEW HOLLAND 276514
• NIPPON J1316001
• OEM 11421258039
• Orenstein-Koppel 1447560
• ORIGINAL EQUIPMENT PLUS OF-556
• Parts Plus PH2816
• PERFORMAX PO-130
• PEUGEOT 1109C5
• PHILLIPS 66 PO258
• PHILLIPS 66 PO28
• PRO/GAUGE PGO-183
• PURFLUX LS115
• PURFLUX LS834
• Purolator 6665979
• Purolator L10168
• Purolator L10183
• Purolator MF63000
• Purolator OC25
• Purolator PC20oF
• Purolator PER168
• Purolator PER179
• Purolator PER17K
• Purolator PER211
• Purolator PER276
• Quaker State PO-130
• Quaker State QA46
• Quaker State QS3816
• QUINTON HAZELL QFL0010
• Ryco Z88A
• Sakura 1704400
• Sakura C1202
• Sakura C8032
• SCT SM165
• SEAT 3636608
• SECURITY PH-3816
• SERVICE 1 OF183
• SHELL SH519
• STP S3816
• SURE SFO7103
• Suzuki 1560173002
• Suzuki 1651073000N
• Suzuki 1651073001N
• Suzuki 1651073002N
• Suzuki 1651073010N
• Suzuki 1651073012N
• Suzuki 1651073013N
• Suzuki 1651087012N
• TECAFILTRES OC198
• TECAFILTRES OC25
• TECALEMIT FB2055
• TECALEMIT FB2064
• TECALEMIT FB2069
• TECALEMIT FB5311
• TECNOCAR R458
• TECNOCAR R922
• TEHO 4119
• TEHO OK6
• TRUST PH2816
• UFI 092313141
• UFI 2313101
• UFI 2318800
• UNICO-FILTER LI87481
• UNION-CITY-BODY C122
• UNION-CITY-BODY C630
• UNIPART GFE166
• UNOCAL PF2816
• VALVOLINE L183
• VAUXHALL 7884256
• VAUXHALL 7965051
• VAUXHALL 7973235
• VAUXHALL 7973429
• VERA 10-00405
• VERA 10-50405
• VIC C108
• VIC C703A
• VM 4115063
• VMC LF502022
• VW Group 35115591
• WARNER PH2816
• WARNER-SWASEY PH2816
• WARNER-SWASEY SD3
• WARNER-SWASEY WPH2816
• WIPAC CA130
• WIPAC CA137
• WIPAC CA139
• Wix 335P
• Wix 51288
• Wix 51374
• Wix 557085
• Wix WL7085
• WOODGATE WGL9101
• WORLDPARTS W27319

Specifications:

• Outer Diameter: 3.15 inch (80 mm)
• Thread Size: 3/4-16
• Length: 2.95 inch (75 mm)
• Gasket OD: 2.48 inch (63 mm)
• Gasket ID: 2.05 inch (52 mm)
• Efficiency 99%: 35 micron
• Efficiency Test Std: JIS D 1611
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 12 psi (0.8 bar)
• Bypass Valve Setting HR: 15 psi (1 bar)
• Media Type: Cellulose
• Collapse Burst: 100 psi (6.9 bar)
• Type: Full-Flow
• Style: Spin-On
