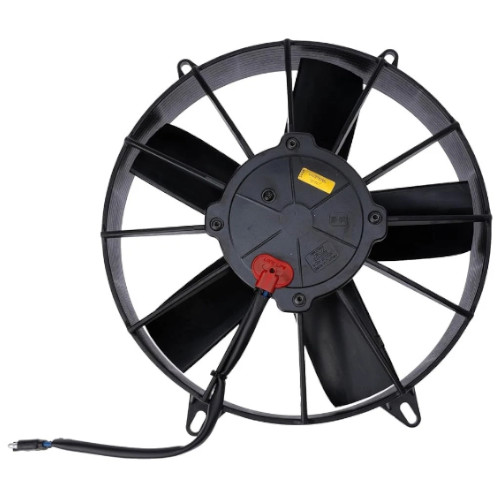

DCM TA11S3002 Condenser Fan 11″ For Carrier

DCM TA11S3002 Condenser Fan 11" For Carrier

Cross Reference #:

• TEXAS TRUCK AC 100-1045HP
• AIRSOURCE - MEI 3585HP
• COOLSTAR - MEI 142-1031
• DCM TA11S3002
• PRIMATECH PTAC3585HP
• SPAL 30100177
• SPAL 30102040
• SPAL VA03-AP6-37S
• SPAL VA03-AP70/LL-37S
• TRUCK AIR - MEI 06-3585H
• TRUCKAC+ T2019
• TTA/C 35-6014HP

Applications:

• Carrier bus and transit HVAC systems

Specification:

• Direction Pusher
• Voltage 12V
• Trade Size 12"
• (A) Overall Diameter 11 15/16"
• Overall Width 3 3/4"
• (C) Mount Hole Dist 11 1/2"
• (D) Mount Hole Dist 6 5/8"
• Blade OD 11"
• Airflow CFM 1370

Features:

• OEM CARRIER SPECIFICATION: The TA11S3002 is the original equipment condenser fan used in Carrier bus and transit HVAC systems.
• Sealed permanent-magnet DC motor that is designed for the harsh under-vehicle and rooftop environments
• The 5 straight (paddle) blades are molded from glass-filled (GF) nylon, a composite material that combines the lightweight properties of nylon with the rigidity and heat resistance of glass fiber reinforcement.
• At typical condenser operating static pressures (0.2-0.4 in H2O), airflow ranges from approximately 530-812 CFM,sufficient to maintain proper condenser head pressure and A/C cooling performance during the hottest operating conditions.
• The fan features a female/ male plug harness that connects directly to the vehicle's existing HVAC wiring harness. No splicing, no soldering, no adapter harnesses. Plug in and go.
• At only 3.81 inches deep, the TA11S3002 fits in the tight spaces between the condenser coil and the vehicle's body or equipment housing.

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life. However, we assure you they are entirely brand new and have never been used.

DCM Manufacturing, Inc., a Dreison International Company, is a recognized leader in manufacturing, sales and service of OEM products for the mobile HVAC and industrial heat transfer markets. Dreison International began operations in 1976. Corporate offices are in Cleveland, OH, and Grand Prairie, TX. DCM’s products also include a complete line of dash fans, heaters, plastic louvers, grilles and accessories. DCM employs cost-effective lean manufacturing methodologies throughout our production facilities. DCM products are found in a variety of applications worldwide including construction, agricultural, heavy truck, bus, marine and high performance markets.
