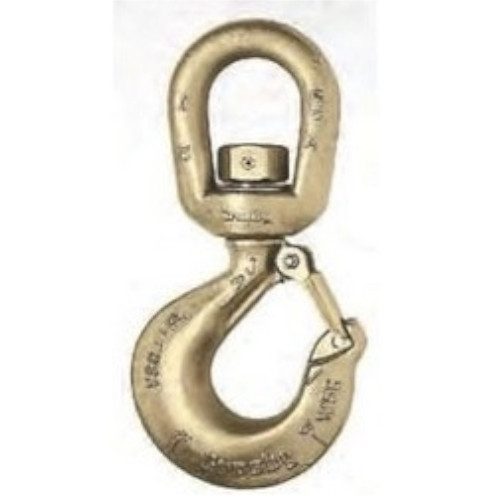

Crosby 1048636 Hook, 3 Ton, Rear Loader

Description

Crosby 1048636 Hook, 3 Ton, Rear Loader

Specifications:

• 9.75″ x 5.5″ x 2.5″
• Forged – Quenched and Tempered.
• Swivel hooks are load rated.
• Proper design, careful forging, and precision controlled quench and tempering gives maximum strength without excessive weight and bulk.
• Low profile hook tip designed to utilize Crosby S-4320 or PL-N latch kit. Simply purchase the latch assemblies listed and shown on pages 119 – 120.
• Even years after purchase of the original hook, latch assemblies can be added.
• Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK features:
• Deformation Indicators — Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a QUIC-CHECK measurement to determine if
• the throat opening has changed, thus indicating abuse or overload. Angle Indicators Indicates the maximum included angle which is allowed between two (2) sling legs in the hook.
• These indicators also provide the opportunity to approximate other
• included angles between two sling legs.
• Type Approval and certification in accordance with ABS 2007 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes.

Features:

• High-Quality Steel Made from forged alloy steel for strength and durability.
• Heat-Treated Enhances toughness and resistance to wear.
• Load Rating Clearly marked for easy identification of working load limits (WLL).
• Latching Mechanism Secure safety latch to prevent accidental load release.
• Corrosion Resistance Available with galvanized or coated finishes for extended lifespan.
• Versatile Designs Includes eye hooks, swivel hooks, and clevis hooks for different applications.
• Certification & Compliance Meets ASME, OSHA, and other industry standards.
• Fatigue Rated Designed to withstand repeated lifting cycles.

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life. However, rest assured they are entirely brand new and have never been used.

Crosby Group is a global leader in the material handling industry, renowned for its high-quality rigging and lifting products. Their extensive product line includes shackles, hooks, wire rope clips, chain slings, hoist rings, lifting clamps, turnbuckles, snatch blocks, crane blocks, and sheaves.
