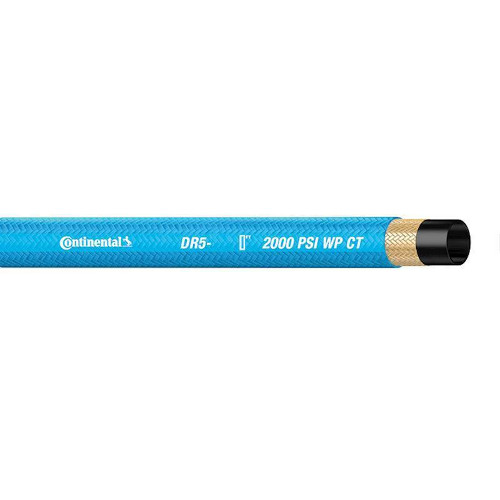

Continental DR5-10X50BX Hydraulic Hose Hi Temp/Desert (Sold By the Foot)

Description

Continental DR5-10X50BX Hydraulic Hose Hi Temp/Desert (Sold By the Foot)

Cross Reference #:

• 20345392
• CONDR5-10X50BX

Features:

• CPE Tube
• -40°F to 302°F
• Blue Impregnated Textile Braid

Specifications:

• BRAND Continental ContiTech
• MPN 20345392
• SERIES Desert DR5
• I.D. 1/2″
• LENGTH 1′
• O.D. 0.92″
• PSI 1750 PSI
• PSI (BURST) 7000 PSI
• BEND RADIUS 5.50″
• TUBE CPE
• REINFORCEMENT One braid textile, one braid steel
• COVER TYPE Blue impregnated textile braid
• MIN. TEMP (°F) -40
• MAX TEMP (°F) 302
• APPLICATION Turbocharger oil lines, tilt cab cylinder and air brake lines, transmission coolant and filtration lines.
• COLOR Blue
• SPECIFICATIONS Sizes 7/8″ (-16) and 1-1/8″ (-20) do not meet SAE J1402 Type AII & DOT FMVSS 106 Type AII because these sizes are not listed in the referenced specifications.
• FITTINGS All fittings compatible with the DR5 hose family are listed in Section 6 (starting on page 217) of the catalog.
• SAFETY NOTES SAE 100R5 Hydraulic Applications: -40°F to 302°F (-40°C to 150°C) Air Brake Applications: -40°F to 200°F (-40°C to 93°C) General Hot Oil Applications: -40°F to 302°F (-40°C to
• 150°C) General Air Applications: -40°F to 200°F (-40°C to 93°C) Water Applications: -40°F to 212°F (-40°C to 100°C)
• CERTIFICATIONS Meets or exceeds the performance requirements of: SAE 100R5; SAE J1402 Type All, DOT FMVSS 106 Type All; SAE J1942/U.S. Coast Guard
