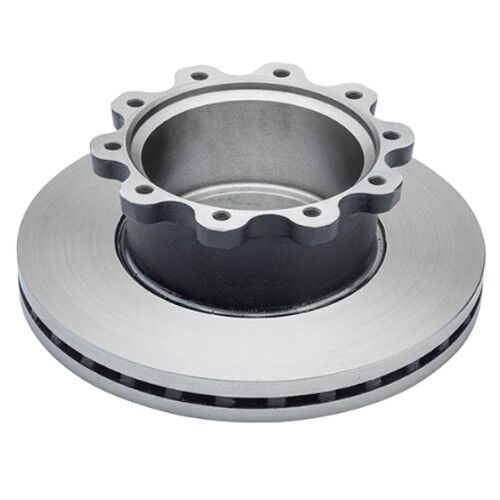

Celect CSD17A56 Air Disc Brake Rotor, For Wabco Pan 22 and DB22LD

Celect CSD17A56 Air Disc Brake Rotor, For Wabco Pan 22 and DB22LD

Cross Reference #:

• HDRS34172
• NEOTEK 1065022GF
• DURABRAKE 76619
• Hendrickson S-34172
• HDR-S-34172
• Celerity CSD17A56
• Automann Number: 153.134172
• Dayton Number: 125705
• Fuwa Number: H32-D002
• D-34172
• D34172
• Meritor Number: M44D76619
• Ridewell Number: 1660363
• Webb Number: 55097P
• PL76619
• Webb 55097P
• 1660363-A
• 0601602755123

Compatibility:

• Wabco Pan 22
• Haldex DB22LD

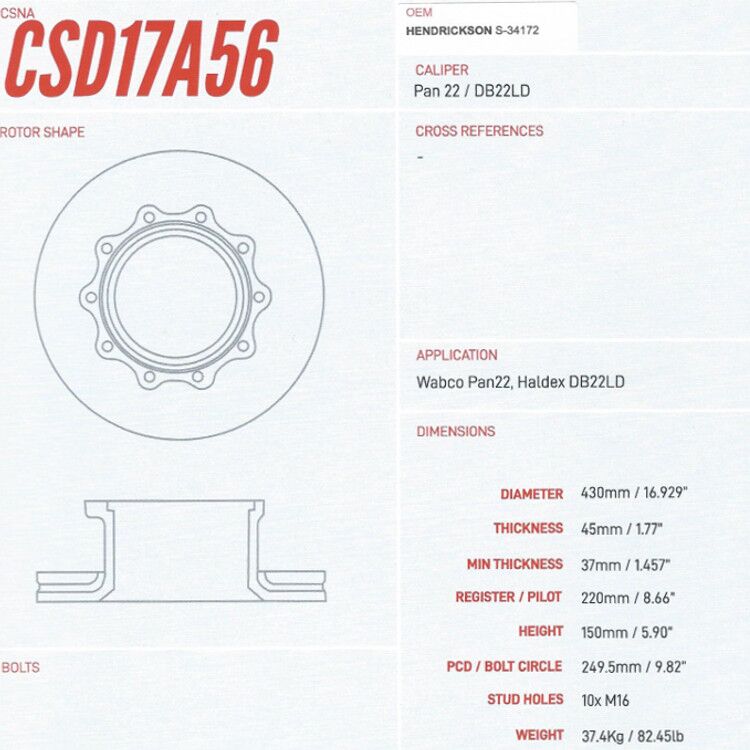

Specifications:

• Diameter: 430mm / 16.929"
• Thickness: 45mm / 1.77"
• Minimum Thickness: 37mm / 1.457"
• Register/Pilot: 220mm / 8.66"
• Height: 150mm / 5.9"
• PCD/Bolt Circle: 249.5mm / 9.82"
• Stud Holes: 10xM16
• Weight: 37.4Kg / 82.45lbs

Celect Braking offers premium brake components for passenger cars and commercial vehicles in Europe. We are a brand built on a foundation of over 45 years' experience within the automotive industry covering not only passenger car, but also commercial vehicle, off-highway and two-wheeler. Our ideology is to supply the marketplace with not only an exceptional product but the services that go along with it.
