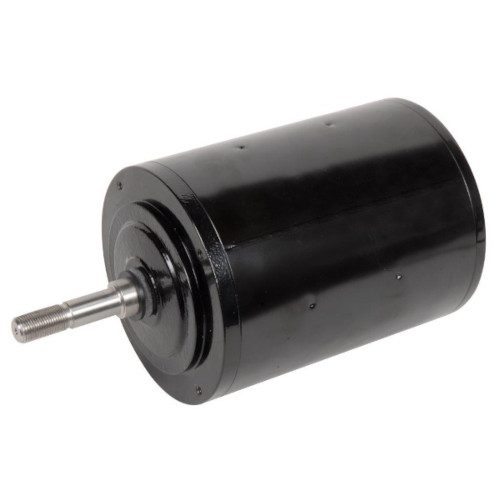

Carrier Transicold 54-00648-20 Evaporator 3 Phase Motor

Description

Carrier Transicold 54-00648-20 Evaporator 3 Phase Motor

Applications:

• PrimeLINE models
• ThinLINE models

Cross Reference #:

• CT54-00648-20
• CTT54-00648-20
• CAR54-00648-20
• 540064820

Features:

• High-quality replacement part for Carrier Transicold refrigeration systems
• Made with durable materials for optimal performance
• Ensures efficient cooling and reliable operation
• Easy to install and cost-effective solution for maintaining peak efficiency
• Helps extend the lifespan of your equipment and minimize downtime

Specifications:

• TYPE: THREE PHASE INDUCTION
• VOLTAGE AND FREQUENCY: 400V TO 506V AT 60HZ
• HORSEPOWER: 0.63 SHAFT HP @ 60HZ @ 3450 RPM
• 0.08 SHAFT HP @ 60HZ @ 1725 RPM
• LOCKED ROTOR AMPS (LRA): 7.2 (HIGH SPEED)
• 2.7 (LOW SPEED)
• DIELECTRIC STRENGTH: 2304VAC (MIN) 60HZ, 1 SECOND
• INSULATION RESISTANCE: 50 MEGOHMS (MIN) AT 1000 VDC
• INSULATION: CLASS F
• AMBIENT TEMPERATURE: -50°F TO 150°F

Carrier Transicold helps improve transport and shipping of temperature-controlled cargoes with a complete line of equipment and services for refrigerated transport and cold chain visibility. Carrier Transicold has been an industry leader, providing customers around the world with advanced, energy-efficient and environmentally sustainable container refrigeration systems and generator sets, direct-drive and diesel truck units, and trailer refrigeration systems
