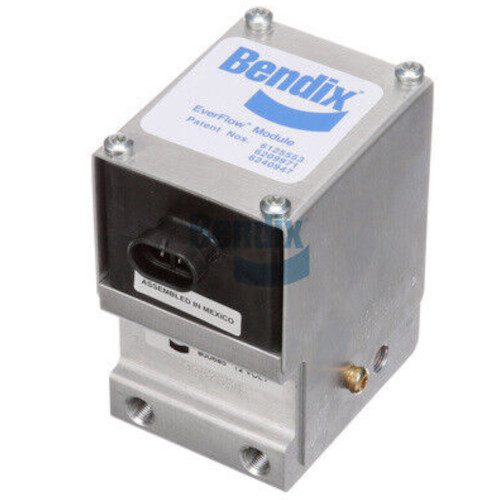

Bendix 800685 Pressure Control Module, EverFlow

Description

Bendix 800685 Pressure Control Module, EverFlow

Cross Reference #:

• BW800685
• BEN800685
• BK800685
• BX800685

Specifications:

• Mounting: 3/8-16 UNC-2B (2x)
• Connector Type: Metri-Pack 280 Series 2-Way Sealed Connector (Male)
• Minimum Operating Temperature: -40 °F (-40 °C)
• Voltage Nominal: 12 VDC
• Maximum Inlet Temperature: 160 °F (71 °C)
• Control Port – Dryer 1: 1/8-27 NPT
• Control Port – Dryer 2: 1/8-27 NPT
• Control Port – Governor: 1/8-27 NPT
• Reservoir Port: 1/8-27 NPT
• AD-CF

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Bendix Commercial Vehicle Systems designs, develops, and supplies leading-edge active safety technologies, energy management solutions, and air brake charging, and control systems and components under the Bendix® brand name for medium- and heavy-duty trucks, tractors, trailers, buses, and other commercial vehicles throughout North America.
