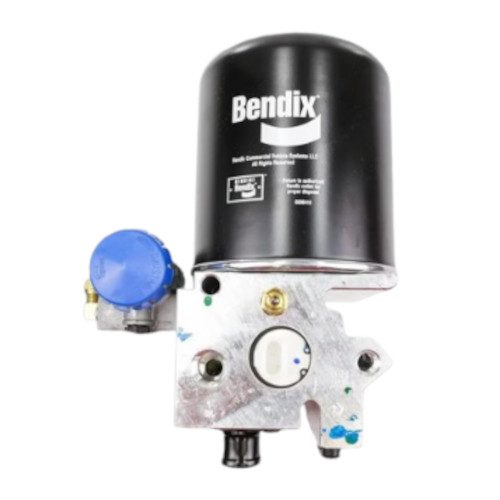

Bendix 800383 Air Brake Dryer, AD-IS (Genuine)

Description

Bendix 800383 Air Brake Dryer, AD-IS (Genuine)

Cross Reference #:

• BEN800383
• BX800383
• BW800383
• Navistar FLTAD0383
• World American WA800383
• AUTOMANN 170.5004049
• ATM170.5004049
• AUT170.5004049
• 1705004049
• FLEETRITE FLTAD0383
• MERITOR R9555004050X
• PAI 802661
• Precision Rebuilders Inc 5004050
• BW 800383
• 800383BXW
• 1705004049

Specifications:

• Air Dryer ModelAD-IS
• Cartridge TypeStandard desiccant
• Bracket IncludedNo
• Inlet/Supply Port Size1/2 in -14 NPT
• Delivery Port Size1/4 in NPT
• Control Port SizeNone
• Voltage12 V
• Heater Wattage90 W
• NotesPressure protection valve configs are not interchangeable.

Features:

• Designed to collect and remove moisture as well as solid, liquid, and vapor contaminants from the air before entering the air brake
• system
• An integrated air supply system that provides heavy duty vehicles with an integrated air dryer, purge reservoir, governor, and various charging valve components in a module
• Consists of a “Spin on” desiccant cartridge that is secured to a base assembly, which contains a delivery check valve assembly, safety valve, heater and thermostat assembly, threaded air connections, and the purge valve assembly
• With pressure protection valves designed to protect each reservoir from a pressure loss in an air accessory or a pressure loss in the other reservoir
• Has a purge control channel drain that allows any condensation in the air dryer
• Operates alternately between the charge cycle and the purge cycle
• Offers ease of serviceability since replaceable assemblies can be serviced without the need to remove the air dryer from the vehicle
  Extends the service life of the air brake system components
• Helps prevent air brake system freeze up, avoid costly downtime, and reduce maintenance costs

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Bendix Commercial Vehicle Systems designs, develops, and supplies leading-edge active safety technologies, energy management solutions, and air brake charging, and control systems and components under the Bendix® brand name for medium- and heavy-duty trucks, tractors, trailers, buses, and other commercial vehicles throughout North America.
