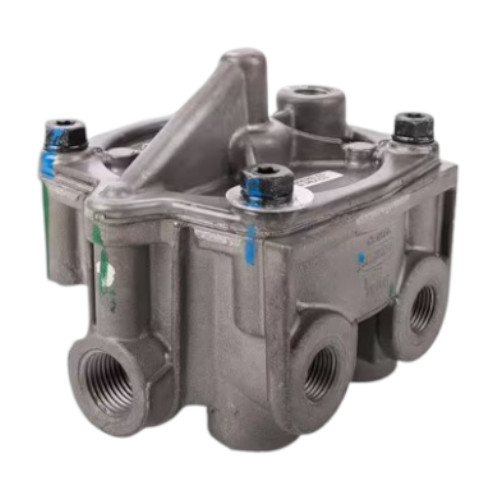

Bendix 065476 Pilot Relay Valve, R-12P (Genuine)

Bendix 065476 Pilot Relay Valve, R-12P (Genuine)

Cross Reference #:

• BEN065476
• BW065476
• 65476
• WORLD AMERICAN WA65476
• OTR065476
• TRUCKPRO BW065476
• 109264
• 109264X
• KN28300X
• OR109264

Applications:

Specification:

• Mounting: .96 in. x .40 in. Slot (4x)
• Supply Port 1: 1/2-14 NPT
• Supply Port 2: 1/2-14 NPT
• Maximum Operating Temperature: 200 °F (93 °C)
• Minimum Operating Temperature: -40 °F (-40 °C)
• Exhaust Port: Dust Shield
• Body Configuration: 2 SUP / 4 DEL (2H + 2V)
• Control Secondary Service Port: 1/4-18 NPT
• Delivery Port 1: 3/8-18 NPT
• Delivery Port 2: 3/8-18 NPT
• Delivery Port 3: 3/8-18 NPT
• Delivery Port 4: 3/8-18 NPT
• Crack Pressure: 0.0 PSI
• TMC Washer: RD000
• Mounting Bracket Location: Loose in. Box
• Control Port Orientation CW from Front Face: 90°
• Internal Supply Passage to Cover: Yes

Features:

• Helps speed up the application and release of the air brakes
• Usually mounted at the rear of the vehicle close to the chambers it serves
• Designed for either frame or reservoir mounting
• Comes with a universal mounting bracket to allow ease of interchange with other Bendix relay valves
• Makes extensive use of non-metallic internal components
• Offers ease of servicing since the inlet/exhaust valve can be replaced without removing the line

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life. However, we assure you they are entirely brand new and have never been used.
