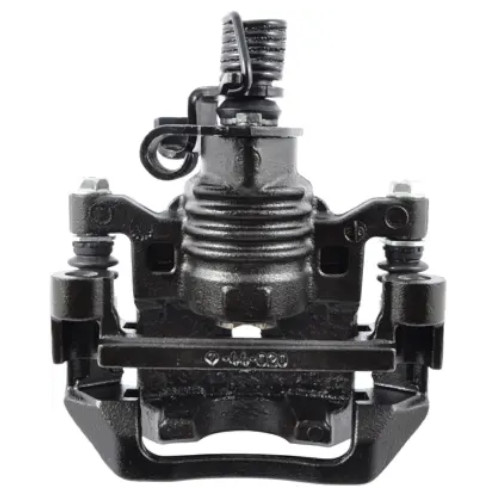

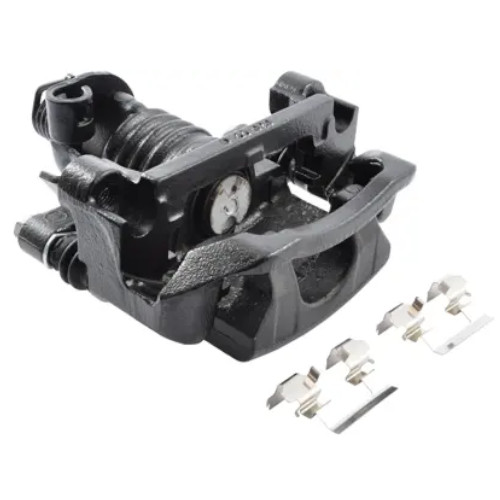

Adaptive One 2612XB Caliper, Brake (Reman)

Adaptive One 2612XB Caliper, Brake (Reman)

Cross Reference #:

• 18A5011 SLB1903 SLB2027 2C-5011 18-P5011 18-B5011 BC62589 SC0982 C62589 2612XB 99-17394B RR RH 11-21190-1 FRC11828N FRC11842N FRC11828C FRC11842C FRC11828 FRC11842 CN1540

Applications:

• Buick Allure 2005 -2009
  Buick LaCrosse 2005 -2009
  Chevrolet Impala Limited 2014 -2016
  Chevrolet Impala 2011 -2013
  Pontiac Grand Prix 2004 -2008

Specifications:

• Includes Mounting Bracket Yes
  Corrosion Resistant Yes
  Pads Included No
  Pad Wear Sensor Included No
  Caliper Type Floating
  Mounting Hole Quantity 2
  Piston Diameter 38 mm
  VMRS Code 013-017-002
  Quality Level Best
  Inlet Type Banjo Bolt
  Inlet Thread Size M10-1.0
  SDS Required No
  Finish Black Coated
  Casting Material Aluminum
  Position Rear Right
  Caliper Color Black
  Color Black
  Mounting Hardware Included No
  Brand NAPA
  Caliper Piston Material Steel
  Contents Includes Brake Pad Installation Hardware w/ Banjo Bolt & Copper Crush Washers - Where Applicable
  Rust Resistant Coating Yes
  Contains VOCs No
  Bleeder Thread Size M10-1.0
  Attachment Type Bolted
  New Or Remanufactured Remanufactured
  Caliper Slides Included Yes
  Piston Quantity Single Piston

Features:

• Friction Ready ? includes all hardware and components except brake pads for a faster, hassle-free installation
  100% New Rubber Components ? seals and boots replaced to ensure optimal braking performance
  New Pin Boots ? reduce moisture intrusion and corrosion on guide bolts and slide pins
  OE-Matched Mounting Brackets ? included wherever originally equipped, with chased and inspected threads to prevent cross-threading
  Phenolic Pistons ? engineered to OE specifications for proper heat dissipation (no steel substitutes)
  Banjo Bolts & Copper Crush Washers ? included where applicable for a secure, leak-free brake line connection
  New Bleeder Screws ? ensure an airtight seal every time
  Environmentally Responsible Remanufacturing ? mechanically and chemically cleaned with no unsafe processes
