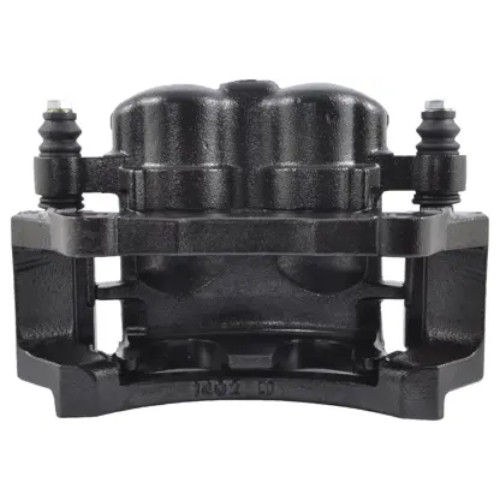

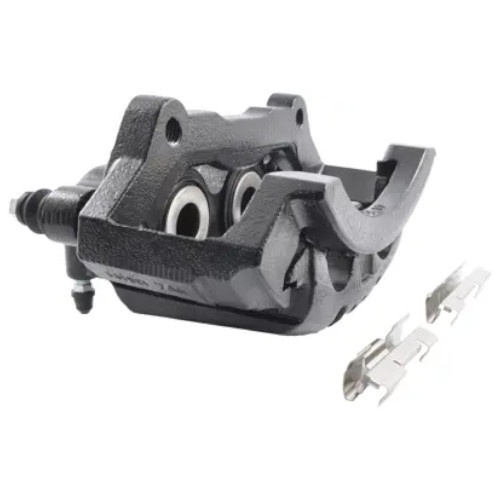

Adaptive One 2547XA Caliper, Brake (Reman)

Adaptive One 2547XA Caliper, Brake (Reman)

Cross Reference #:

• 18A4894 SLB1871 2C-4894 2C-4964 18-P4894 18-P4964 18-B4894 18-B4964 BC67511 SC2014 SC2014M C67511 2547XA 99-17700A 11-22134M-1 FRC11689N FRC11689C FRC11689 CN1714

Applications:

• Dodge Ram 1500 1/2 Ton - Pickup 2007 -2008
  Dodge Ram 2500 Mega Cab 3/4 Ton - Pickup 2006 -2008
  Dodge Ram 3500HD 1 Ton - Pickup 2003 -2008
  Dodge Ram 2500HD 3/4 Ton - Pickup 2003 -2008
  Dodge Ram 3500 Mega Cab 1 Ton - Pickup 2006 -2008
  Dodge Ram 1500 Mega Cab 1/2 Ton - Pickup 2007 -2008

Specifications:

• Includes Mounting Bracket Yes
  Corrosion Resistant Yes
  Pads Included No
  Pad Wear Sensor Included No
  Caliper Type Floating
  Mounting Hole Quantity 2
  Piston Diameter 45 mm
  VMRS Code 013-017-002
  Quality Level Best
  Inlet Type Banjo Bolt
  Inlet Thread Size M10-1.0
  SDS Required No
  Finish Black Coated
  Casting Material Cast Iron
  Position Rear Right
  Caliper Color Black
  Color Black
  Mounting Hardware Included No
  Brand NAPA
  Caliper Piston Material Phenolic
  Contents Includes Brake Pad Installation Hardware w/ Banjo Bolt & Copper Crush Washers - Where Applicable
  Rust Resistant Coating Yes
  Contains VOCs No
  Bleeder Thread Size M10-1.0
  Attachment Type Bolted
  New Or Remanufactured Remanufactured
  Caliper Slides Included Yes
  Piston Quantity Dual Piston

Features:

• Friction Ready ? includes all hardware and components except brake pads for a faster, hassle-free installation
  100% New Rubber Components ? seals and boots replaced to ensure optimal braking performance
  New Pin Boots ? reduce moisture intrusion and corrosion on guide bolts and slide pins
  OE-Matched Mounting Brackets ? included wherever originally equipped, with chased and inspected threads to prevent cross-threading
  Phenolic Pistons ? engineered to OE specifications for proper heat dissipation (no steel substitutes)
  Banjo Bolts & Copper Crush Washers ? included where applicable for a secure, leak-free brake line connection
  New Bleeder Screws ? ensure an airtight seal every time
  Environmentally Responsible Remanufacturing ? mechanically and chemically cleaned with no unsafe processes

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life. However, rest assured they are entirely brand new and have never been used.
