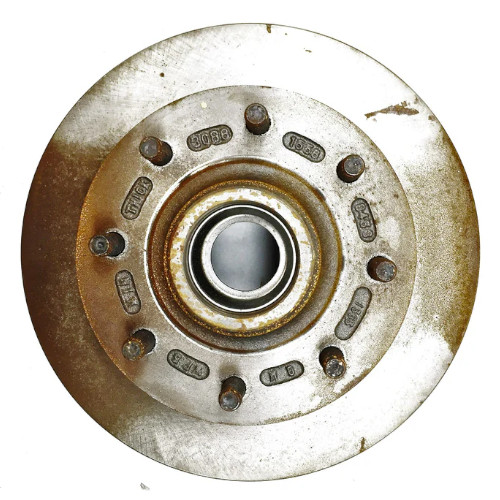

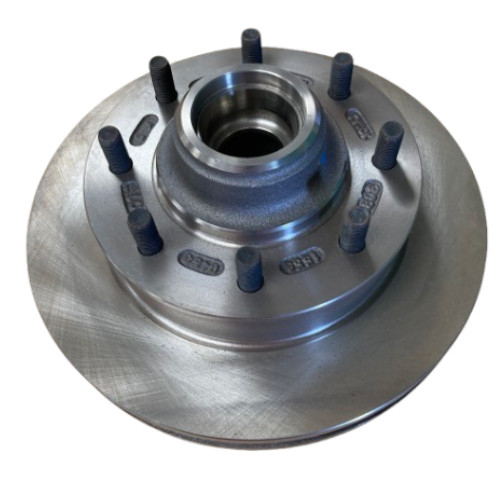

ACDelco 177-813 Brake Rotor (GM, Chevy, Suburban, C-Series, +)

Description

ACDelco 177-813 Brake Rotor (GM, Chevy, Suburban, C-Series, +)

Cross Reference #:

• General Motors: 15649969
• General Motors: 15721421
• General Motors: 15981319
• General Motors: 18060216
• Brembo: 09.8179.80
• Universal: 101980
• Universal: 101980P
• Centric Parts: 120.66027
• Centric Parts: 120.66027CRY
• Centric Parts: 121.66027
• Centric Parts: 125.66027
• California Drum & Rotor: 125212
• Autoxtra: 125212
• Centric Parts: 126.66027CSL
• Centric Parts: 126.66027CSR
• Centric Parts: 126.66027SL
• Centric Parts: 126.66027SR
• Centric Parts: 127.66027L
• Centric Parts: 127.66027R
• Centric Parts: 128.66027CL
• Centric Parts: 128.66027CR
• Centric Parts: 128.66027L
• Centric Parts: 128.66027R
• Promax: 14-5598
• Bendix: 141818
• Advance Auto Parts: 141818
• ACDelco: 177-759
• ACDelco: 177-813
• Casting Numbers: 210402-C
• BrakeBest: 25010533
• Bosch: 25010558
• BrakeBest: 25010558
• Autopart International: 25304
• Brembo: 27081
• Brembo: 27247
• Centric Parts: 320.66027
• Centric Parts: 320.66027F
• Centric Parts: 321.66027
• Casting Numbers: 325320
• Winhere: 443117
• Brake Pro: 4615598
• TruStar: 493480
• Century: 5075
• Guardian: 52-125212
• Roadmates: 526177
• Eurorotor: 55598
• Ultra Brake: 55598
• Casting Numbers: 55748
• Mighty Distributing System: 5598
• Quality Brand: 5598
• Rockhill: 5598
• AutoZone: 5598
• Standard Rotors and Drums: 5598
• Qualis: 5598
• Newtek Automotive USA: 5598
• UAP: 5598
• AutoZone: 5598B
• AutoZone: 5598DG
• BrakeBest: 56263
• BrakeBest: 56263R
• BrakeBest: 56263RGS
• Qualitee International: 64-93-480
• GREN: 664503
• American Remanufactured: 789-44027
• Autoxtra: 8056263
• BrakeBest: 81-125212
• American Remanufactured: 89-44027
• American Remanufactured: 89-44049
• Autospecialty: AR8627
• Autospecialty: AR8627E
• Autoxtra: AX5343
• Autoxtra: AX5598
• Wagner Brake: BD125212
• BrakeBest: BD125212
• Monroe Brakes: BD125212
• Wagner Brake: BD125212E
• Midas: BR1906
• Brake Headquarters: BR55707
• Dura Corp: BR5598
• DuraGo: BR5598
• Continental-ContiTech: CW33704
• EIS Brakes: D17598
• AutoZone: DL5598
• Euclid: E-9232
• Formula Blue Hydraulic Brake Parts: E12571032
• Parts Master: P125212
• WABCO: PS125212
• Bendix: R449232
• Meritor: R449232
• TruStar: R93480
• Delphi: RB703
• VIPAR – Vehicle Indusrty Parts & Manufacturing: X50657
• Advance Auto Parts: YH141818
• Advance Auto Parts: YH141818C
• Advance Auto Parts: YH141818P
• Winhere: YH3117

Applications:

• Chevrolet G30 (1996)
• Chevrolet Express 3500 (1996-2001)
• Chevrolet Express 2500 (1996-2002)
• Chevrolet C3500 (1995-2000)
• Chevrolet C2500 Suburban (1992-1999)
• Chevrolet C2500 (1995-2000)
• Chevrolet C1500 Suburban (1994-1999)
• GMC Savana 3500 (1996-2001)
• GMC G3500 (1996)
• GMC C3500HD (1995-1996)
• GMC Savana 2500 (1996-2002)
• GMC C3500 (1995-2000)
• GMC C2500 Suburban (1992-1999)
• GMC C2500 (1996-2000)
• GMC C1500 Suburban (1994-1999)

Specifications:

• Inner Bearing # [cntrc] 410.91035
• Product Grade [cntrc] Standard
• Outer Bearing # [cntrc] 415.66000
• Inner Seal # [cntrc] 417.66000
• Vane Style [cntrc] Straight
• Disc Mounting [cntrc] Hub & Rotor
• Weight [cntrc] Lbs 37.000
• Misc Holes [cntrc] 0
• Outer Race # [cntrc] 416.66000
• Weight [cntrc] Kgs 16.820
• Discard Thickness 30.860 MM
• Discard Thickness 1.215 IN
• Nominal Thickness 32.700 MM
• Nominal Thickness 1.287 IN
• Stud Thread Diameter 14.000 MM
• Overall Height 126.100 MM
• Overall Height 4.965 IN
• ABS Tone Ring Included Yes
• Surface Type Smooth
• 54 317.200 MM
• Rotor Outside Diameter 12.488 in
• Solid Or Vented Type Rotor Vented
• Bolt Thread Pitch 1.500 MM
• Bearings Included No
• Center Hole Diameter 116.600 MM
• Center Hole Diameter 4.591 IN
• Mounting Bolt Hole Circle Diameter 165.100 MM
• Mounting Bolt Hole Circle Diameter 6.500 IN
• Stud/Lug Hole Quantity 8

Features:

• ACDelco parts are known for their high quality, reliable performance, and durability in various automotive applications.
• The manufacturing process for ACDelco parts adheres to stringent standards, ensuring consistency and reliability across their product range.
• ACDelco uses advanced materials and technologies to enhance the longevity and functionality of their automotive parts.
• With rigorous quality control measures in place, ACDelco parts meet or exceed industry standards for performance and safety.*Please note that the items you are about to purchase might appear dusty due to their extended shelf life. However, rest assured they are entirely brand new and have never been used.

ACDelco is a renowned brand under General Motors, offering a vast selection of high-quality automotive replacement parts and accessories. With over a century of experience, ACDelco is known for its commitment to reliability and innovation, providing products that meet or exceed industry standards. The brand is trusted by professionals and consumers alike, delivering everything from batteries and brakes to filters and spark plugs. ACDelco parts are engineered for durability and performance, ensuring vehicles run smoothly and efficiently.
