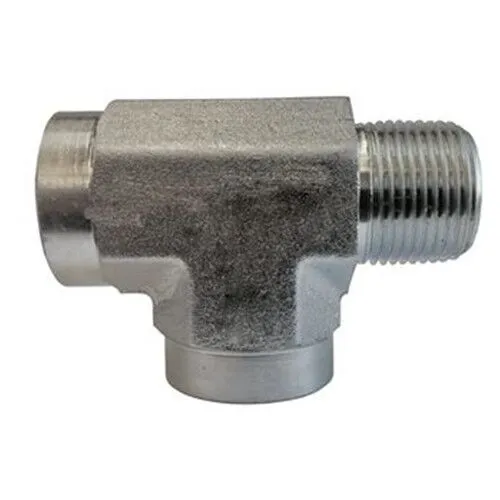

Parker 012T-2-2 Male Run Tee, 1/8″ FNPT X 1/8″ MNPT (7 Pack)

Description

Parker 012T-2-2 Male Run Tee, 1/8″ FNPT X 1/8″ MNPT (7 Pack)

Cross Reference #:

• PH-012T-2-2
• PF-012T-2-2
• 012T22
• PH012T22
• 2092-2-2S

Specifications:

• Male pipe thread / female pipe thread SAE 140424
• All dimensions are in inches Made of steel
• Tube Fitting Part #: 1/8 MRO
• End Size: 1/8-27
• D Drill (in.): 0.188
• Ref D1 Drill (in.): 0.328
• N (in.): 0.78
• N1 (in.): 0.66
• XX After Assembly (in.): 0.55
• Y (in.): 9/16
• Standard Dynamic Pressure (x 1,000 PSI) -S: 5.0
• Standard Dynamic Pressure (x 1,000 PSI) -SS: 5.0
• Standard Dynamic Pressure (x 1,000 PSI) -B: 3.2

Parker Hydraulic Valve Division offers a wide breadth of hydraulic valves to meet your specific hydraulic application requirements. Our offering includes hydraulic valve products for mobile and industrial applications. We are committed to offering a broad selection of valves and components with worldwide availability
