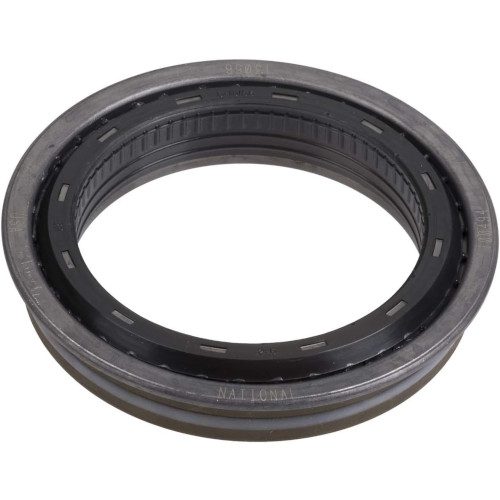

National 100494 Oil Seal, Multi-Purpose (Genuine)

Description

National 100494 Oil Seal, Multi-Purpose (Genuine)

Cross Reference #:

• Clark Lift Truck 234512
• Mack 446GC181
• Mack 88AX261P2
• Volvo 85108790
• General Motors 15526367
• General Motors 2024226
• SKF 32385
• SKF 32500
• SKF 32380
• SKF 32410
• Chicago Rawhide 32380
• Chicago Rawhide 32410
• Chicago Rawhide 32385
• Chicago Rawhide 32500
• Timken 100494
• Ford E5HZ4573A
• Victor Reinz 47667
• Rockwell International A-1205-B-1926
• Rockwell International A-1205-L-2428
• Rockwell International A-1805-D-576
• Rockwell International A-1205-X-2728
• Rockwell International A1-1205-X-2728
• Rockwell International A-1205-J-2428
• Rockwell International A-1205-R-2592
• Rockwell International R945001
• Rockwell International R945010
• Stemco 429-0007
• Stemco 4332385
• Meritor A-1205-B-1926
• Meritor A-1205-L-2428
• Meritor A-1205-X-2728
• Meritor R945010
• Meritor A1-1205-X-2728
• Meritor A-1205-J-2428
• Meritor A-1205-R-2592
• Meritor A-1805-D-576
• Meritor R945001

Specifications:

• Inside Diameter 3.253 IN
• Inside Diameter 82.630 MM
• Outside Diameter 4.260 IN
• Outside Diameter 108.200 MM
• Width 0.635 IN
• Width 16.130 MM
• Material Fluoro-Elastomer
• Installation Tool RD2337
• Footnote Sure-Lock? I.D. rib design
• Part Description Oil Seal
• Sealing Material Fluoro-Elastomer
• Series 100000
• Thickness 0.635 IN
• Thickness 16.130 MM
• Type 08
• Unit of Dimension Inch
• Housing Bore 4.249 IN
• Housing Bore 107.920 MM
• Shaft Diameter 3.253 IN
• Shaft Diameter 82.630 MM

Features:

• Design type: spring loaded; multi-lip
• Temperature range: -40°F to 400°F / -40°C to 204°C
• Excellent high temperature capabilities
• Compatible with wide range of fluids
• Delivers quality and reliable performance for every type of repair

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

National Oil Seals, now under the Timken umbrella, are high quality products. Oil seals are used wherever shafts rotate and bearings require lubrication to work effectively. Timken’s National Oil Seal line of O-ring seal kids boast the coverage necessary for the gamut of popular applications. These handy oil seals serve to close spaces between stationary and moving components in mechanical equipment, also helping to prevent lubricant from escaping the system.
