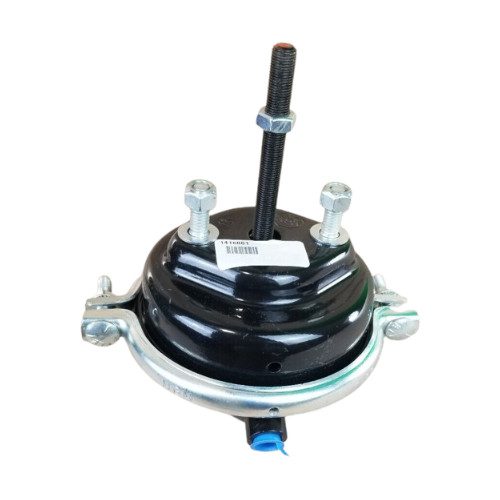

MGM 1416001 Service Brake Chamber, C16, 2.25″ Stroke, 4″ Rod (Genuine)

Description

MGM 1416001 Service Brake Chamber, C16, 2.25″ Stroke, 4″ Rod (Genuine)

Cross Reference #:

• NAVISTAR FLTS16S20
• MERITOR V943276P16
• MERITOR V653276P16
• MERITOR A643276P16
• MERITOR V933276P16
• MERITOR V61-3276P16

Specifications:

• Brand: MGM
• Condition: New
• Mounting Bolt Thread: 7/16-14
• Mounting Bolt Length (in.): 1.170
• Port Size: 3/8-18 NPTF
• Stroke (in.): 2.25
• Stroke 2.25″ (57.2 mm)
• Weight lb (kg) 5.90 lb (2.7 kg)
• A 4.43″ (112.5 mm)
• B 3.64″ (161.0 mm)
• C 6.66″ (169.0 mm)
• D 3.00″ (76.2 mm)
• E 7/16″ – 14 UNC
• F 1/2″ – 20 UNF
• Inlets 3/8″ – 18 NPTF
• X – Min. (aftermarket unit only) 4.00″ (101.6 mm)

Features:

• Formed Steel Pressure Cap -Epoxy-Coated
• Formed Steel Non- Pressure Chamber -Epoxy-Coated
• Heavy Duty Nylon Reinforced Diaphragms
• Top and Side Air Ports – 3/8″ NPTF
• Center Hole Shield (Except type 12 and type 16)

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

MGM Brakes, is a leading manufacturer of spring brake actuators and brake products for commercial vehicles, specializing in heavy-duty braking solutions. Founded in 1956, MGM has built a reputation for producing reliable, durable brake systems that enhance safety and performance in demanding environments. Their products, including a wide range of air brake actuators, are known for high-quality engineering and are trusted by fleet operators across North America. The company places a strong emphasis on innovation, with ongoing research and development to advance brake technology and meet evolving industry standards. MGM Brakes’ commitment to quality and safety has established them as a trusted provider of brake components for buses, trucks, and other heavy-duty vehicles.
