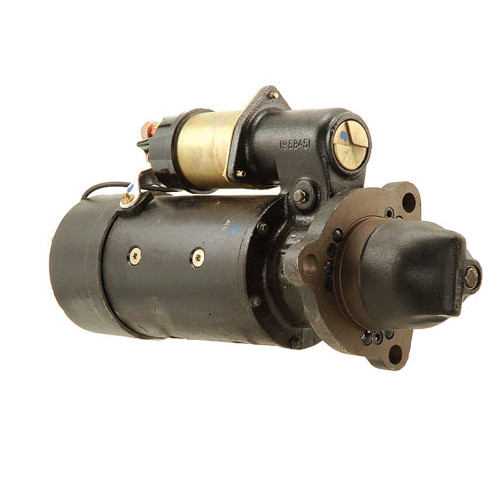

Delco 10461055 42MT Starter Motor (Remanufactured)

Description

Delco 10461055 42MT Starter Motor (Remanufactured)

Fitment:

• 1965-1973, 1979-1980 Peterbilt 282
• 1997-2007 Kenworth T2000
• 2000-2007 Peterbilt 387
• 1986-2007 Kenworth T600A
• 1987-2007 Kenworth T800
• 1981-2007 Kenworth W900
• 1987-2007 Peterbilt 357
• 1988-2007 Peterbilt 378
• 1986-2007 Peterbilt 379
• 1996-2003 Peterbilt 330
• 1991-2007 Peterbilt 320
• 2005-2007 Peterbilt 335
• 1981-2006 Mack DM
• 1981-2007 Mack MR
• 1981-1990 Mack R
• 1981-2004, 2007 Mack RD
• 1989-1996 Kenworth T400
• 1993-1996 Kenworth T450
• 1988-1989 Mack CM
• 1991-1996 Peterbilt 375
• 1996-2007 Peterbilt 385
• 1990-1996, 1999 Western Star 3800
• 1981-1985 Kenworth K100
• 1984-1987 Peterbilt 349
• 1981-1988 Peterbilt 359
• 1981-2007 Kenworth C500
• 1981-1984 Kenworth L700
• 1989-2003 Mack CH
• 1981, 1983, 1985-1986 Peterbilt 310
• 1981-1982, 1984 Peterbilt 348
• 1981-1999 Peterbilt 362
• 1987-2001 Peterbilt 377
• 1989-1994 Peterbilt 372
• 1984-1994 Mack MH
• 1981-1989 Mack RS
• 1985-1993 Mack RW
• 1981-1985 Mack U
• 1991-2007 Mack CL
• 2006-2007 Peterbilt 386
• 1981 Peterbilt 352
• 1981 Peterbilt 353
• 1981-2002 Western Star 4800
• 1981-1983, 1985-1986, 1988-2002 Western Star 4900
• 1989-2001 Western Star 5900
• 1989-1991, 1995, 1997-1998, 2001 Western Star 6900
• 1997-2002 Western Star 5800
• 2002-2003 Western Star 4900SA
• 1997-2002 Western Star 4900E
• 1981-1983 White WX
• 2002-2003 Western Star 4900FA
• 1981-1983 White WCS
• 2002-2003 Western Star 4900EX
• 2002-2003 Western Star 6900XD
• 1981-1983 White WCM
• 1981, 1983 White WHL
• 1981-1983 White WHS

Cross Reference #:

• S9-042-1101
• 8200308
• 8200289
• 1990484
• 8200750
• 42610461055
• D03-10461055RX
• DR10461055
• DRA10461055
• 10461055RMAN
• 2132X10461055
• R10461055
• WILSON HD ROTATING ELECT 91-01-4295
• DELCO REMY 10462155
• DELCO REMY 1990428

Specifications:

• Model: 42MT
• Type: Reman Starter
• System Voltage: 12
• Mounting Type: SAE 3
• Pinion Teeth: 11
• Pinion Pitch: 6/8
• Solenoid Position: 082
• Rotation: CW
• Polarity: Insulated
• Over Crank Protection: Yes

Service Parts:
1 CE Housing Asm 10496573
2 CE Housing Service Kit 10533166
3 Armature Asm 1987989
4 Field Coil Asm 1988111
5 Terminal & Lead Asm 10498209
6 Lever Housing Asm 1988436
8 Drive Asm 830620
9 Drive Housing Asm 1988137
12 SSL Solenoid / Conventional Replacements 1115701
14 SSL / Conventional Solenoid Service Kit 10512651
16 Brush Service Kit 1989495
18 Universal Service Kit 1989497

Delco is an American manufacturer, remanufacturer, and distributor of light duty starters, alternators, hybrid power technology, and Delco Remy brand heavy duty systems.
